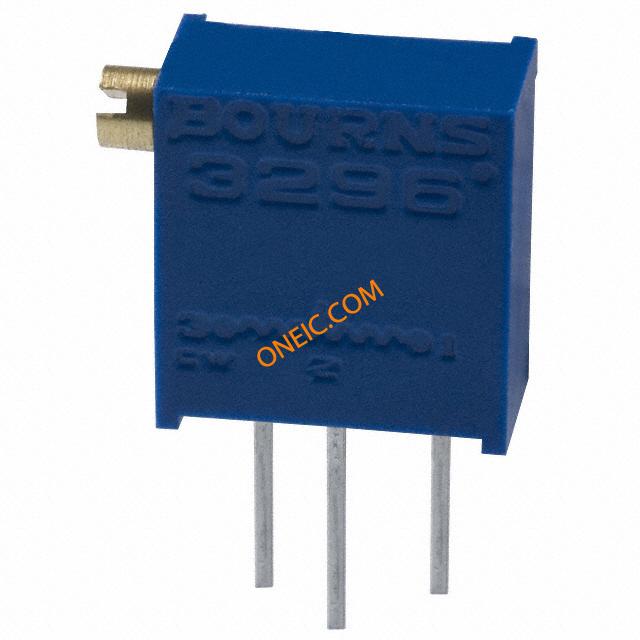

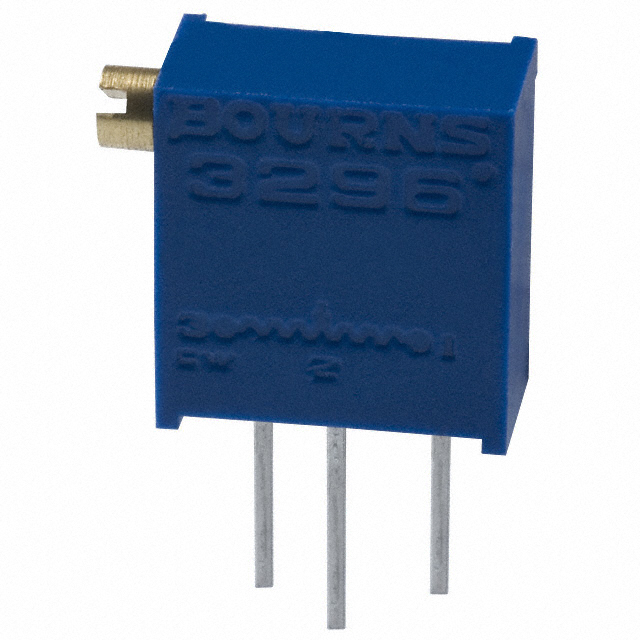

3296Z-1-203

Res Cermet Trimmer 20KΩ 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube

Features

■ Multiturn / Cermet / Industrial / Sealed

■ 5 terminal styles

■ Tape and reel packaging available

■ Chevron seal design

■ Listed on the QPLfor style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035

■ Mounting hardware available H-117P

■ RoHS compliant version available

■ For trimmer applications/processing guidelines, click here

艾睿:
Place this 3296Z-1-203 potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 20K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This product is 11.05 mm long, 10.03 mm tall and 4.83 mm deep. This part has an operating temperature of -55 to 125 °C. This device utilizes cermet technology. The 3296Z-1-203 part has a pin termination style.

Chip1Stop:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube

MASTER:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
