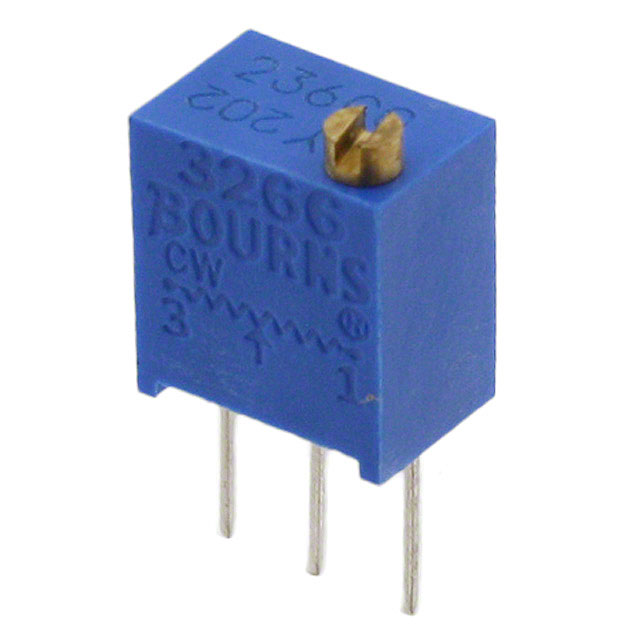

3266Y-1-501LF

1/4广场微调电位器 1/4 Square Trimming Potentiometer

0.25W，1/4W PC 引脚 通孔 微调电位计 金属陶瓷 匝 顶部调节

贸泽:
Trimmer Resistors - Through Hole 1/4IN 500 OHMS 10% SQ W/Standoff Sealed

艾睿:
Not sure what resistance value you need? No problem, applying this 3266Y-1-501LF potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 500 Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. This product is 6.71 mm long, 7.87 mm tall and 4.5 mm deep. The 3266Y-1-501LF part has a pin termination style. This device is made with cermet technology. It has a tolerance of 10%.

安富利:
Res Cermet Trimmer 500 Ohm 10% 1/4W 12ElecTurn 1.78mm 6.71 X 4.5 X 7.87mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 500 Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.71 X 4.5 X 7.87mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 500 Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 4.32 X 7.87mm Pin Thru-Hole Tube

MASTER:
Res Cermet Trimmer 500 Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 4.32 X 7.87mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 500 Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 4.32 X 7.87mm Pin Thru-Hole Tube
