3296Y-1-203

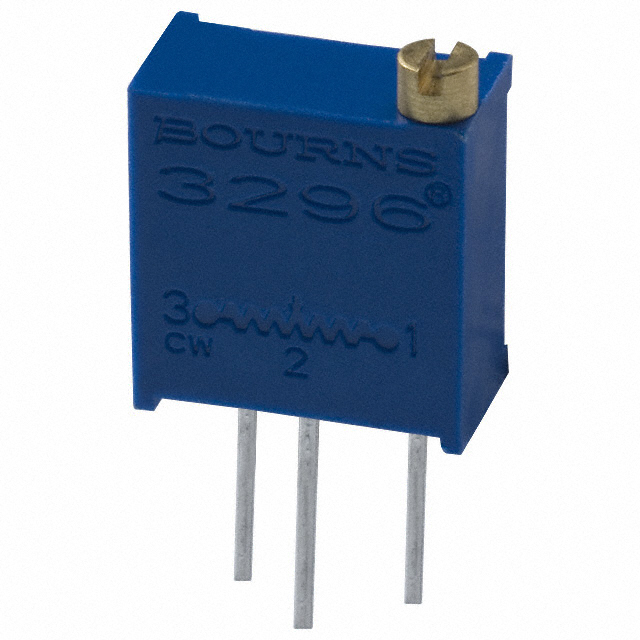

BOURNS 3296Y-1-203 Trimmer Potentiometer, Through Hole, 20KΩ, 0.5W1/2W, ± 10%, 3296Y Series, 25 Turns, Through Hole

Features

■ Multiturn / Cermet / Industrial / Sealed

■ 5 terminal styles

■ Tape and reel packaging available

■ Chevron seal design

■ Listed on the QPLfor style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035

■ Mounting hardware available H-117P

■ RoHS compliant version available

■ For trimmer applications/processing guidelines, click here

得捷:
TRIMMER 20K OHM 0.5W PC PIN TOP

艾睿:
Infrequently adjust the resistor value for your circuit with this 3296Y-1-203 potentiometer from Bourns. This product has a resistance value of 20K Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This device utilizes cermet technology. The 3296Y-1-203 part has a pin termination style. This product is 9.53 mm long, 11.55 mm tall and 4.83 mm deep. This part has an operating temperature of -55 to 125 °C.

Chip1Stop:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3296Y-1-203  Trimmer Potentiometer, Through Hole, 20 kohm, 500 mW, ± 10%, 3296Y Series, 25 Turns, Through Hole

MASTER:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
