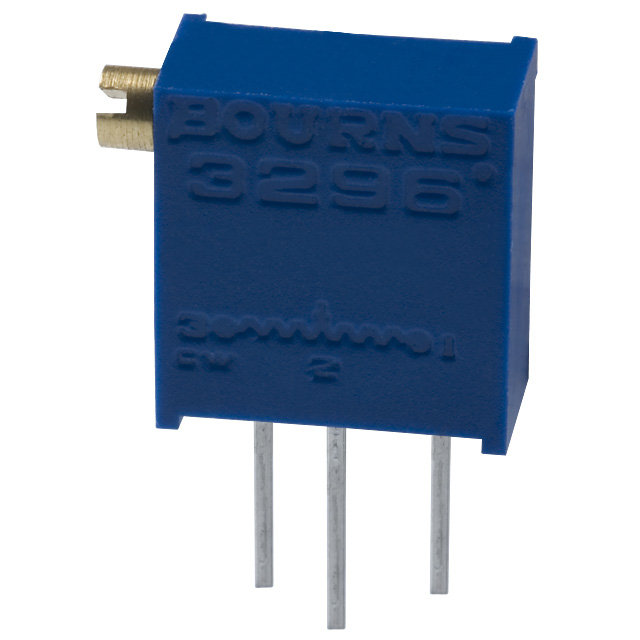

微调电阻 - 通孔 3/8" 500Kohms Sealed Horizontal Adjust
Features
■ Multiturn / Cermet / Industrial / Sealed
■ 5 terminal styles
■ Tape and reel packaging available
■ Chevron seal design
■ Listed on the QPLfor style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035
■ Mounting hardware available H-117P
■ RoHS compliant version available
■ For trimmer applications/processing guidelines, click here
贸泽:
微调电阻 - 通孔 3/8" 500Kohms Sealed Horizontal Adjust
艾睿:
Res Cermet Trimmer 500K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 500K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 11.05 X 4.83 X 10.03mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.5 W
电阻 500 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
长度 9.53 mm
宽度 4.83 mm
高度 10.03 mm
封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
颜色 Blue
重量 851 mg
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
