3296Y-1-105

Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

1 MOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 25.0 匝 顶部调节

艾睿:

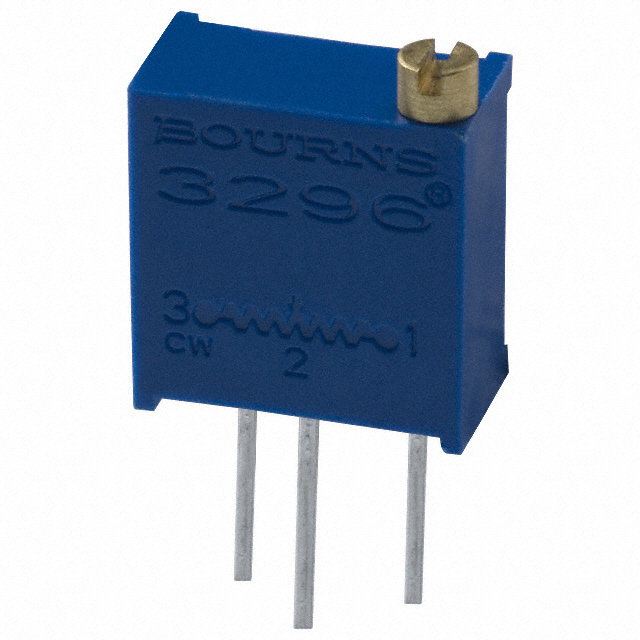

Infrequently adjust the resistor value for your circuit with this 3296Y-1-105 potentiometer from Bourns. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 1M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device is made with cermet technology. This product is 9.53 mm long, 11.55 mm tall and 4.83 mm deep. It has a tolerance of 10%. The 3296Y-1-105 part has a pin termination style. This part has an operating temperature of -55 to 125 °C.

Electro Sonic:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
