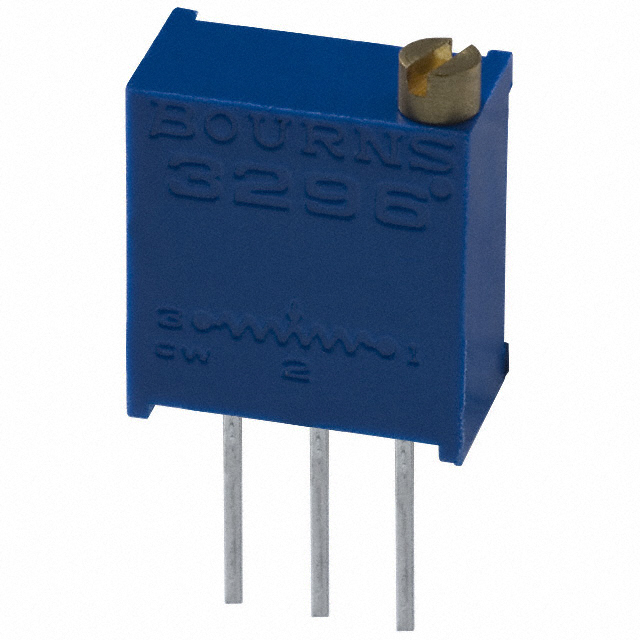

3296W-1-202

微調電阻器 - 透孔 3/8" 2Kohms Sealed V ertical Adjust

Features

■ Multiturn / Cermet / Industrial / Sealed

■ 5 terminal styles

■ Tape and reel packaging available

■ Chevron seal design

■ Listed on the QPLfor style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035

■ Mounting hardware available H-117P

■ RoHS compliant version available

■ For trimmer applications/processing guidelines, click here

得捷:
TRIMMER 2K OHM 0.5W PC PIN TOP

艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3296W-1-202 potentiometer from Bourns is your solution! This product has a resistance value of 2K Ohm. This durable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This device is made with cermet technology. This product is 9.53 mm long, 11.55 mm tall and 4.83 mm deep. The 3296W-1-202 part has a pin termination style.

Chip1Stop:
Res Cermet Trimmer 2K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 2K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3296W-1-202  Trimmer Potentiometer, Through Hole, 2 kohm, 500 mW, ± 10%, 3296W Series, 25 Turns, Through Hole

MASTER:
Res Cermet Trimmer 2K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 2K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
