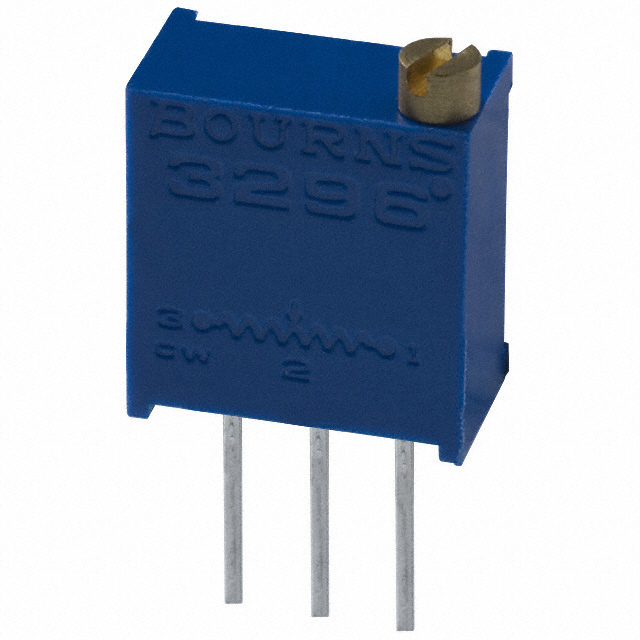

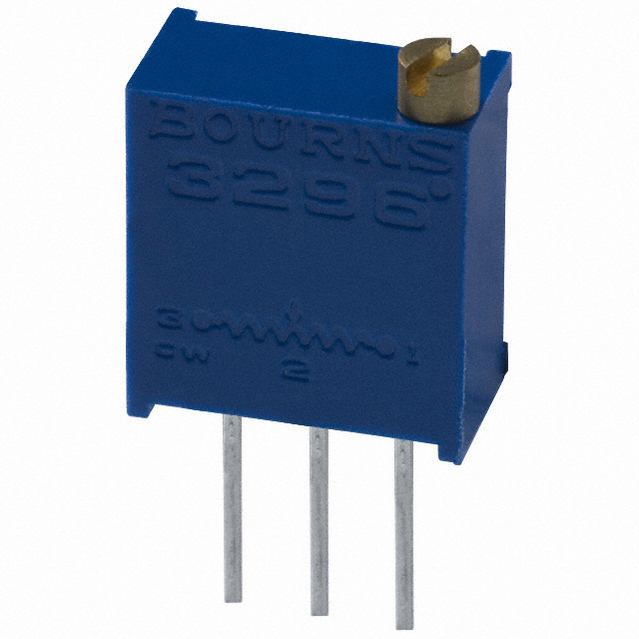

BOURNS 3296W - 1 - 504 Trimmer Potentiometer, Through Hole, 500KΩ, 0.5W1/2W, ± 10%, 3296W Series, 25 Turns, Through Hole
0.5W,1/2W PC 引脚 通孔 微调电位计 金属陶瓷 匝 顶部调节
得捷:
TRIMMER 500K OHM 0.5W PC PIN TOP
贸泽:
Trimmer Resistors - Through Hole 3/8" 500Kohms Sealed Vertical Adjust
艾睿:
Apply this 3296W-1-504 potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 500K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This part has an operating temperature of -55 to 125 °C. The 3296W-1-504 part has a pin termination style. This device is made with cermet technology. This product is 9.53 mm long, 11.55 mm tall and 4.83 mm deep.
安富利:
Res Cermet Trimmer 500K Ohm 10% 1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 500K Ohm 10% 0.5W1/2W 25ElecTurn 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
Newark:
# BOURNS 3296W - 1 - 504 Trimmer Potentiometer, Through Hole, 500 kohm, 500 mW, ± 10%, 3296W Series, 25 Turns, Through Hole
Electro Sonic:
Res Cermet Trimmer 500K Ohm 10% 0.5W1/2W 25ElecTurns 2.19mm 9.53 X 4.83 X 11.55mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.5 W
电阻 500 kΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole

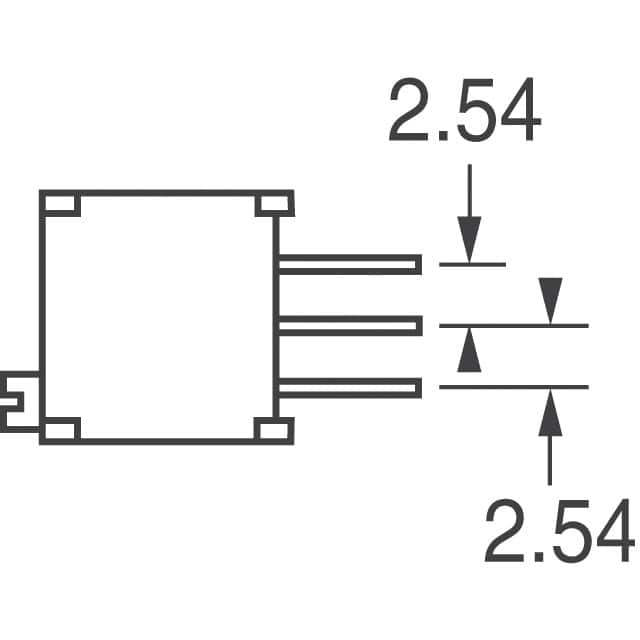

封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
长度 9.53 mm
宽度 9.53 mm
高度 11.55 mm
封装 Square - 0.375" L x 0.190" W x 0.395" H 9.53mm x 4.83mm x 10.03mm
厚度 5.59 mm
颜色 Blue
重量 850 mg
工作温度 55℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
3296W-1-504 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3299W-1-504 伯恩斯 | 完全替代 | 3296W-1-504和3299W-1-504的区别 |
3296W-1-504A 伯恩斯 | 完全替代 | 3296W-1-504和3296W-1-504A的区别 |
3296W-1-504R 伯恩斯 | 完全替代 | 3296W-1-504和3296W-1-504R的区别 |
