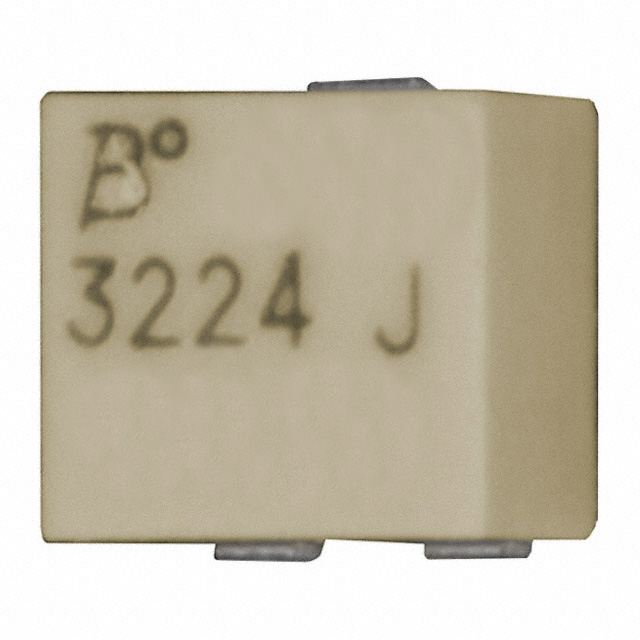

3224J-1-504E

Res Cermet Trimmer 500KΩ 10% 0.25W1/4W 12ElecTurns 1.5mm 4.8 X 5 X 3.71mm J-Hook SMD T/R

These industrial 1⁄4-watt 4 mm 11-turn square surface mount cermet trimmers are sealed to withstand board wash processing. The pick and place centering design have flush adjustment. The design meets EIA/EIAJ/IPC/VRIC SMD standard trimmer footprint. Wiper idles when the stop is reached.

**Features:**

* Resistance Tolerance: ±10%

* Power Rating: 0.25 Watt at 85°C

* Dielectric Strength: 600 VAC

* Temperature Range: –65°C to +150°C

* Load Life: 1000 Hours

* Adjustment Tool: H-91

* Terminal: J-Hook, Gull Wing
