3/8“广场微调电位器 3/8” Square Trimming Potentiometer
0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 匝 顶部调节
艾睿:

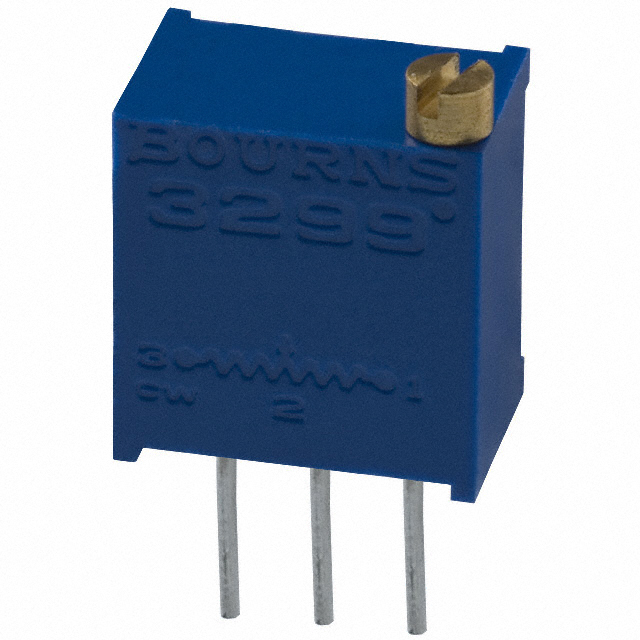

This 3299W-1-204 potentiometer from Bourns is your solution to resistance calibration in a circuit. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 200K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3299W-1-204 part has a pin termination style. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 10%. This product is 9.53 mm long, 11.55 mm tall and 6.1 mm deep. This device utilizes cermet technology.
Chip1Stop:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
MASTER:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 200K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
