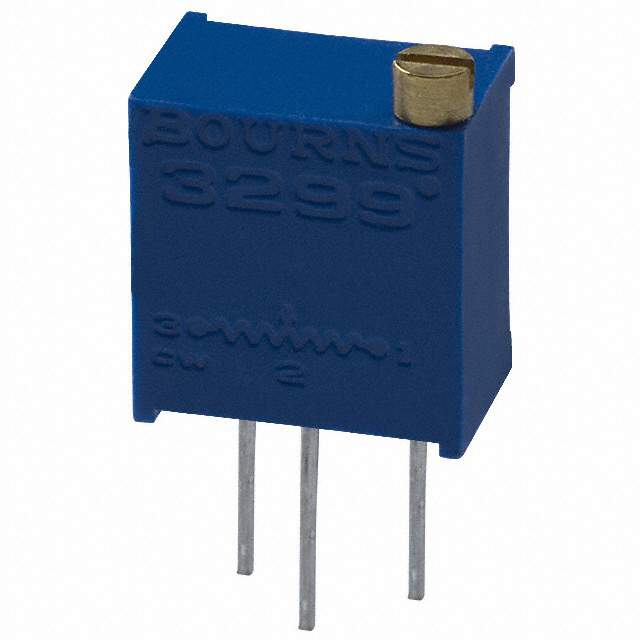

3299Y-1-502

3/8广场微调电位器 3/8 Square Trimming Potentiometer

5 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 25.0 匝 顶部调节

得捷:
TRIMMER 5K OHM 0.5W PC PIN TOP

贸泽:
Trimmer Resistors - Through Hole 5Kohms Standoffs Vertical Adjust 3/8"

艾睿:
Not sure what resistance value you need? No problem, applying this 3299Y-1-502 potentiometer from Bourns will allow you to change the resistance in a matter of seconds. This product has a resistance value of 5K Ohm. This dependable part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. The 3299Y-1-502 part has a pin termination style. This device is made with cermet technology. This part has an operating temperature of -55 to 125 °C. This product is 9.53 mm long, 11.55 mm tall and 6.1 mm deep.

安富利:
Res Cermet Trimmer 5K Ohm 10% 1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube

Newark:
# BOURNS  3299Y-1-502  Trimmer Potentiometer, Through Hole, 5 kohm, 500 mW, ± 10%, 3299Y Series, 25 Turns, Through Hole

Electro Sonic:
Res Cermet Trimmer 5K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 6.1 X 11.55mm Pin Thru-Hole Tube
