3-87977-8

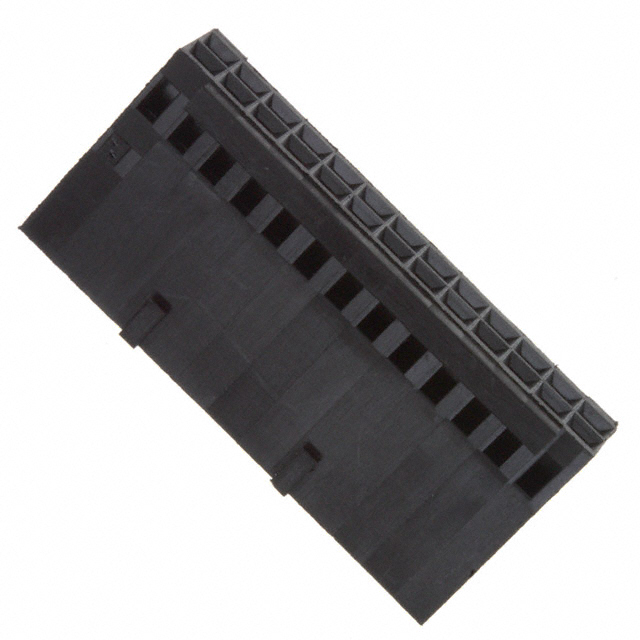

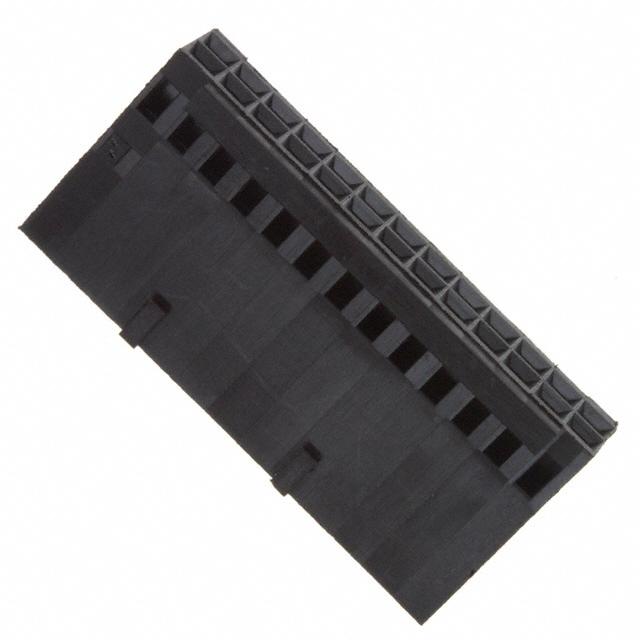

Conn Housing RCP 26POS 2.54mm Crimp ST Cable Mount

26 矩形 - 外壳 插座 黑色 0.100"（2.54mm）

得捷:
CONN RCPT HSG 26POS 2.54MM

艾睿:

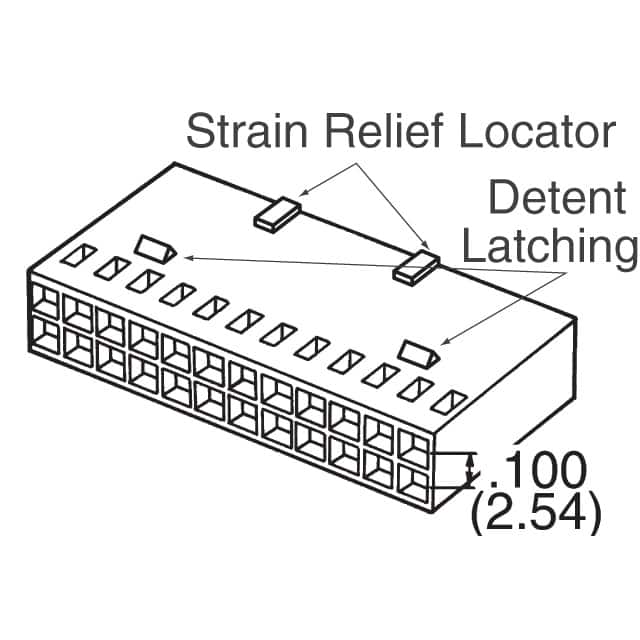

When using discrete wires in a project you should use this 3-87977-8 discrete wire housing from TE Connectivity if a direct socket to board linkage is not functional. This RCP connector has 26 RCP contacts. This is a 2-row connector. Its pitch is 2.54 mm. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. This product is 33.02 mm long and 15.24 mm. 3-87977-8 is housed in black nylon. Its wire is 20-30 AWG. This rectangle connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount

Verical:
Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Black Package

MASTER:
CONNECTOR HSG. , MOD IV, CRIMP SNAP-IN, .100 X .100 CL

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
26 MODIV HSG COMP DR .100 POL

Electro Sonic:
26 MODIV HSG COMP DR .100 POL
