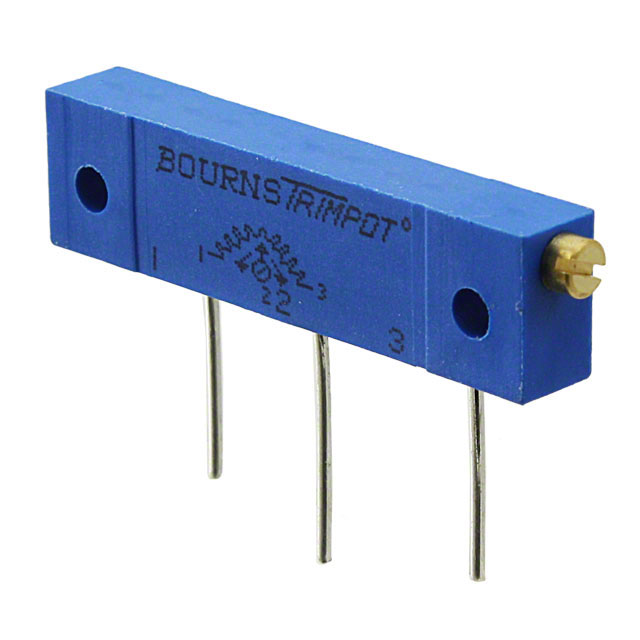

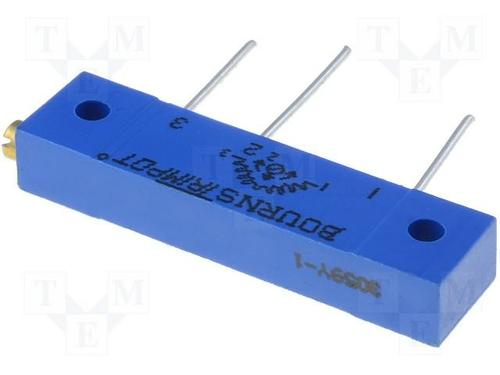

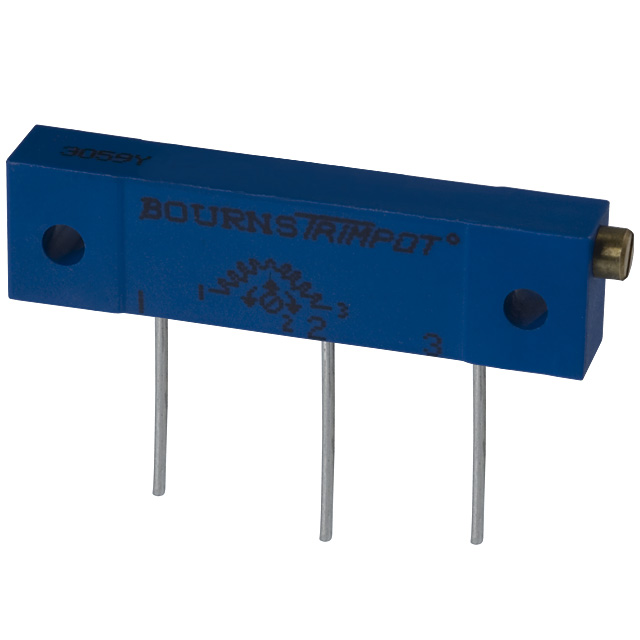

BOURNS 3059Y-1-203LF 微调器,22转 20K
Place this potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This dependable part has a power rating of 1 W. This product has a resistance value of 20K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 33.22 mm long, 8 mm tall and 4.83 mm deep. This device utilizes cermet technology. It has a tolerance of 10%. This part has an operating temperature of -55 to 150 °C. The 3059Y-1-203LF part has a pin termination style.
额定电压DC 400 V
绝缘电阻 1000 MΩ
容差 ±10 %
额定功率 1 W
电阻 20 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Rectangular - 1.250" L x 0.190" W x 0.315" H 31.75mm x 4.83mm x 8.00mm
长度 33.22 mm
宽度 4.83 mm
高度 8 mm
封装 Rectangular - 1.250" L x 0.190" W x 0.315" H 31.75mm x 4.83mm x 8.00mm
颜色 Blue
重量 2.85 g
工作温度 -55℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533408050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3059Y-1-203LF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
3059Y-1-203 伯恩斯 | 功能相似 | 3059Y-1-203LF和3059Y-1-203的区别 |
78PR20KLF TT Electronics | 功能相似 | 3059Y-1-203LF和78PR20KLF的区别 |
