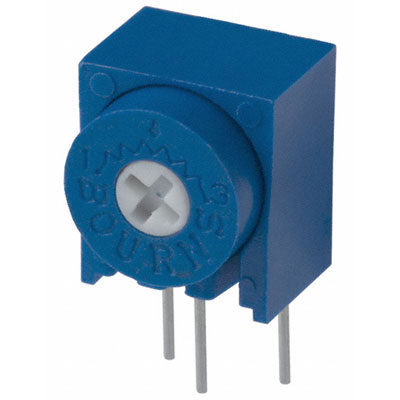

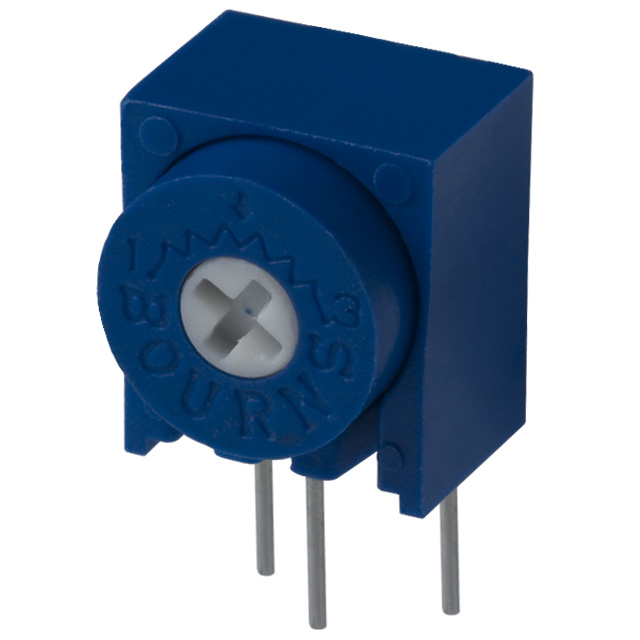

3339W-1-103LF

BOURNS  3339W-1-103LF  微调电位器, 10KΩ, 4转, 10%, 通孔安装

Listed on DESC QPL for Style RJ50 per MIL-PRF-22097 and RJR50 per High-Rel MIL-PRF-39035. Infinite resolution cermet element. Space saving 0.25" dia.

**Features:**

* Power Rating: 0.5 Watt @ 85°C

* Temperature Range: –55°C to +150°C

* Temperature Coefficient: ±100 ppm/°C Max.

* Resistance Tolerance: ±10%

* Termination Finishes: 100% Tin

得捷:
TRIMMER 10K OHM 0.5W PC PIN SIDE

e络盟:
微调电位器, 10KΩ 4转 THRO

艾睿:
This 3339W-1-103LF potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 10K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3339W-1-103LF part has a pin termination style. This part has an operating temperature of -55 to 150 °C. It has a tolerance of 10%. This product is 8.13 mm long, 9.53 mm tall and 8 mm deep. This device is made with cermet technology.

Allied Electronics:
Trimmer, Multi Turn, Cermet, .5 Watt, 10%, 10K

Jameco:
SEALED,CERMET,516IN,4TURN,10K, 10%,SIDE,W,BULK,HAZMAT

安富利:
Res Cermet Trimmer 10K Ohm 10% 1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube

Chip1Stop:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube

Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube

Newark:
# BOURNS  3339W-1-103LF  Trimmer Potentiometer, Surface Mount, 10 kohm, 500 mW, ± 10%, 3339W Series, 4 Turns, Through Hole

MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube
