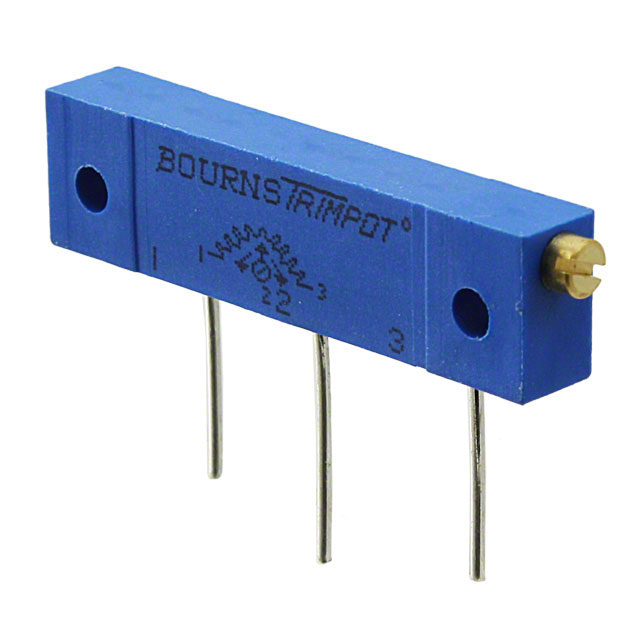

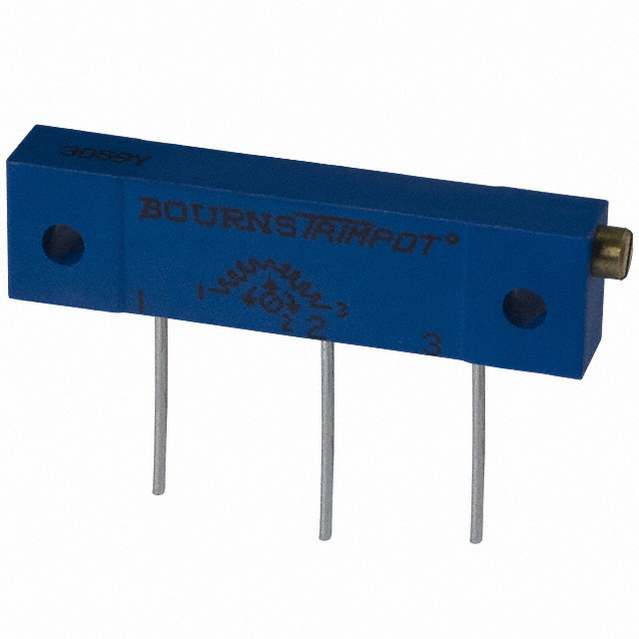

BOURNS 3059Y-1-501LF 微调器,22转 500R
1W PC 引脚 底座安装 微调电位计 金属陶瓷 匝 侧面调节
艾睿:
Optimization and calibration of resistance in a circuit has never been easier with this 3059Y-1-501LF potentiometer from Bourns! This product has a resistance value of 500 Ohm. This durable part has a power rating of 1 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This device utilizes cermet technology. This part has an operating temperature of -55 to 150 °C. The 3059Y-1-501LF part has a pin termination style. This product is 33.22 mm long, 8 mm tall and 4.83 mm deep.
安富利:
Res Cermet Trimmer 500 Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 500 Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
TME:
Potentiometer: mounting; multiturn; 500Ω; 1W; No.of el.turns:22
Verical:
Res Cermet Trimmer 500 Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
Newark:
# BOURNS 3059Y-1-501LF Trimmer Potentiometer, Multiturn, 500 ohm, 1 W, ± 10%, Trimpot 3059 Series, 22 Turns, Through Hole
MASTER:
Res Cermet Trimmer 500 Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 500 Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
额定电压DC 400 V
容差 ±10 %
额定功率 1 W
电阻 500 Ω
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压 400 V
安装方式 Through Hole
封装 Rectangular - 1.250" L x 0.190" W x 0.315" H 31.75mm x 4.83mm x 8.00mm
长度 33.22 mm
宽度 4.83 mm
高度 8 mm
封装 Rectangular - 1.250" L x 0.190" W x 0.315" H 31.75mm x 4.83mm x 8.00mm
颜色 Blue
重量 2.85 g
工作温度 -55℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533408050
