Res Cermet Trimmer 100KΩ 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 6.36 X 7.44mm Gull Wing SMD Tube
100 kOhms 0.25W,1/4W 鸥翼 表面贴装型 微调电位计 金属陶瓷 12.0 匝 侧面调节
艾睿:

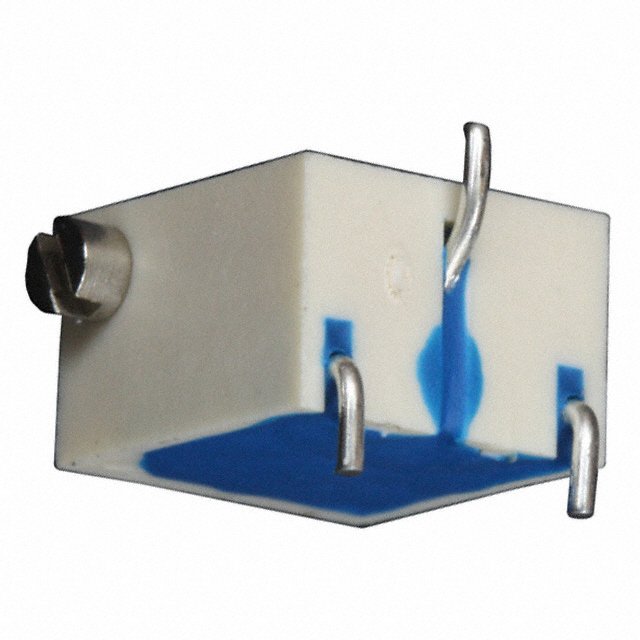

Place this 3269X-1-104 potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This product has a resistance value of 100K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device utilizes cermet technology. This part has an operating temperature of -65 to 150 °C. This product is 7.37 mm long, 7.44 mm tall and 6.36 mm deep. The 3269X-1-104 part has a gull wing termination style. It has a tolerance of 10%.
Newark:
# BOURNS 3269X-1-104 Trimmer Potentiometer, Surface Mount, 100 kohm, 250 mW, ± 10%, 3269X Series, 12 Turns
Electro Sonic:
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 7.37 X 6.36 X 7.44mm Gull Wing SMD Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.25 W
电阻 100 KΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount

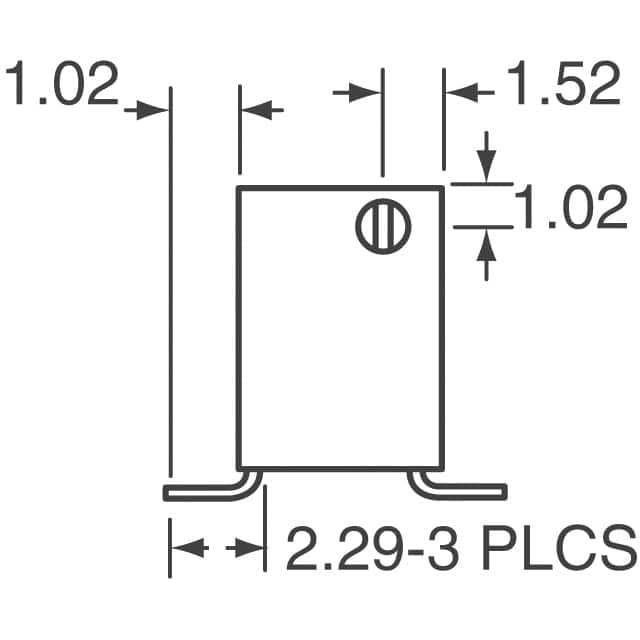

封装 Square - 0.250" L x 0.170" W x 0.293" H 6.35mm x 4.32mm x 7.44mm
长度 7.44 mm
高度 7.44 mm
封装 Square - 0.250" L x 0.170" W x 0.293" H 6.35mm x 4.32mm x 7.44mm
工作温度 -65℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
