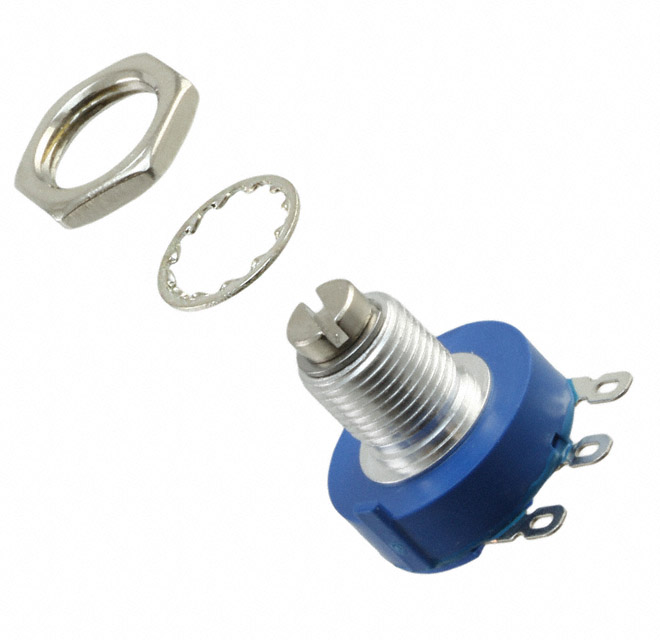

BOURNS 3852A-162-252AL 电位器, 面板控制, 2.5千欧-25欧姆 10 % 1W 500V
Apply this potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This durable part has a power rating of 2 W. This product has a resistance value of 2.5K Ohm. Its temperature coefficient is ±150 ppm/°C. This device is made with cermet technology. This product is 19.05 mm long, 23.55 mm tall and 19.05 mm deep. It has a tolerance of 10%. This part has an operating temperature of -1 to 125 °C. The 3852A-162-252AL part has a solder lug termination style.
额定电压DC 500 V
容差 ±10 %
额定功率 2 W
电阻 2.5 KΩ
阻值偏差 ±10 %
工作温度Max 125 ℃
工作温度Min -1 ℃
安装方式 Panel
封装 Round - 0.750" Dia x 0.250" H 19.05mm x 6.35mm
长度 19.05 mm
高度 23.55 mm
封装 Round - 0.750" Dia x 0.250" H 19.05mm x 6.35mm
工作温度 -1℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533408050
