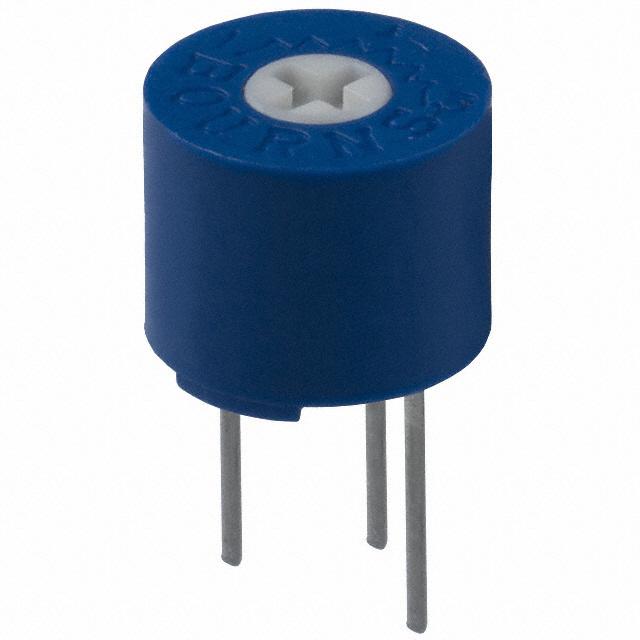

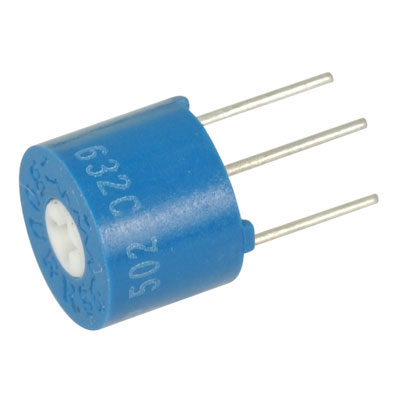

Trimmer, Cermet, 0.5W1/2W, 20000Ω, 300V, 10% +/-Tol, -100,100ppm/Cel, 4 Turns, 5/6INCH, ROUND, 3Pins
20 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 4 Turn Top Adjustment
得捷:
TRIMMER 20K OHM 0.5W PC PIN TOP
贸泽:
Trimmer Resistors - Through Hole 20K 5/16" Rnd 4Turn Cermet
艾睿:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 4ElecTurn 7.62 X 6.35mm Pin Thru-Hole Tube
Jameco:
SEALED,CERMET,5/16IN,4TURN, 20K,10%,TOP,P,BULK
Chip1Stop:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 4ElecTurn 7.62 X 6.35mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 4ElecTurn 7.62 X 6.35mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 500 mW
电阻 20 kΩ
阻值偏差 ±10 %
安装方式 Through Hole
封装 Round - 0.300" Dia x 0.250" H 7.62mm x 6.35mm
长度 7.62 mm
宽度 6.25 mm
高度 6.35 mm
直径 7.62 mm
封装 Round - 0.300" Dia x 0.250" H 7.62mm x 6.35mm
颜色 Blue
重量 567 mg
工作温度 -55℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
