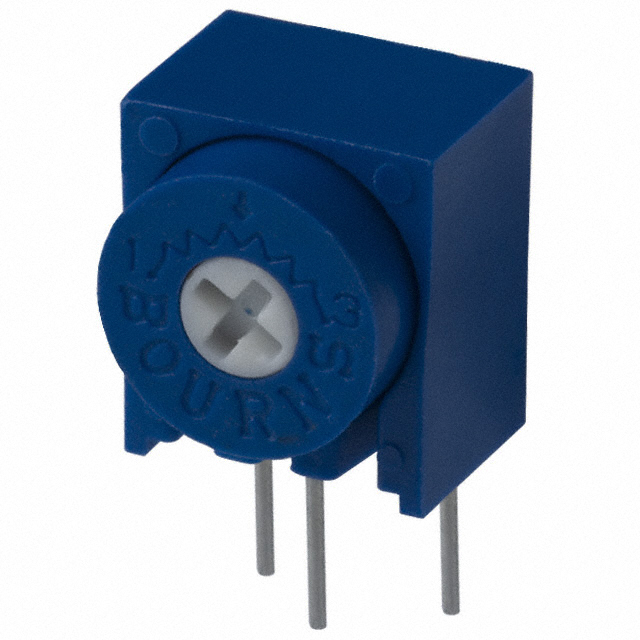

Res Cermet Trimmer 5KΩ 10% 0.5W1/2W 4ElecTurn 8.13 X 8 X 9.53mm Pin Thru-Hole Tube
Optimization and calibration of resistance in a circuit has never been easier with this potentiometer from Bourns! This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 5K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This product is 8.13 mm long, 9.53 mm tall and 8 mm deep. This part has an operating temperature of -55 to 150 °C. The 3339W-1-502LF part has a pin termination style. This device utilizes cermet technology.
容差 ±10 %
额定功率 0.5 W
电阻 5 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Square - 0.320" L x 0.315" W x 0.375" H 8.13mm x 8.00mm x 9.53mm
长度 8.13 mm
宽度 8 mm
高度 9.53 mm
直径 8.13 mm
封装 Square - 0.320" L x 0.315" W x 0.375" H 8.13mm x 8.00mm x 9.53mm
颜色 Blue
重量 567 mg
工作温度 -55℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
