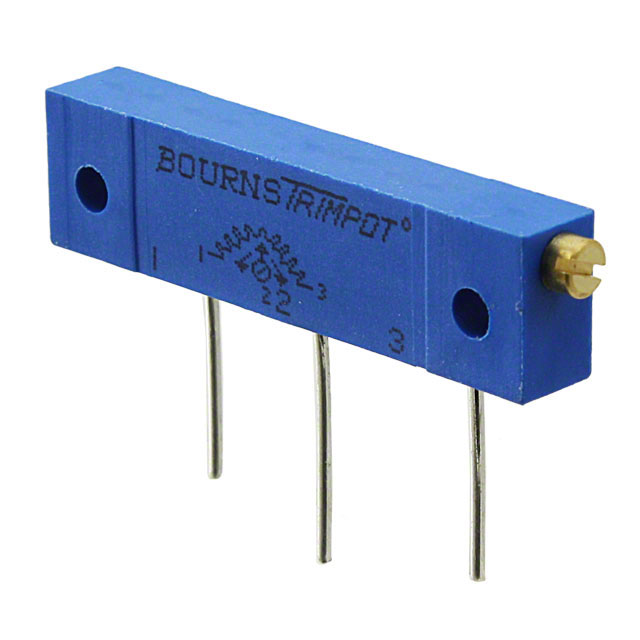

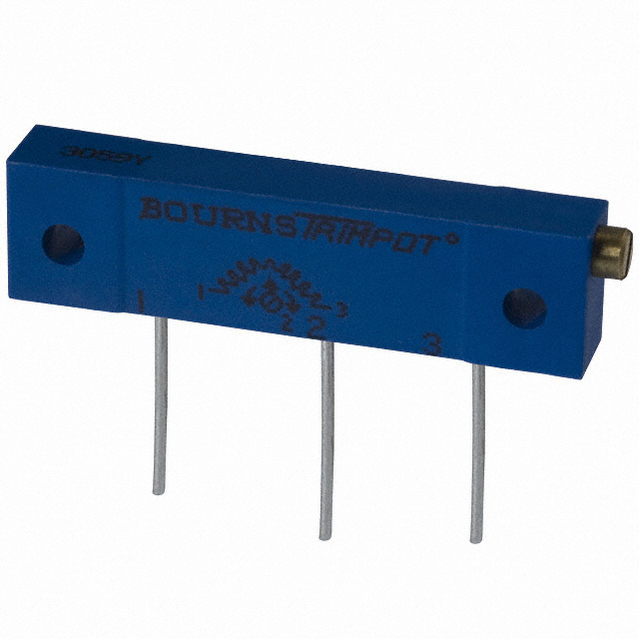

3059Y-1-102

Res Cermet Trimmer 1KΩ 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube

1 kOhms 1W PC Pins Chassis Mount Trimmer Potentiometer Cermet 22 Turn Side Adjustment

得捷:
TRIMMER 1K OHM 1W PC PIN SIDE

艾睿:
Apply this 3059Y-1-102 potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This durable part has a power rating of 1 W. This product has a resistance value of 1K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device utilizes cermet technology. This part has an operating temperature of -55 to 150 °C. The 3059Y-1-102 part has a pin termination style. It has a tolerance of 10%. This product is 33.22 mm long, 8 mm tall and 4.83 mm deep.

Chip1Stop:
Res Cermet Trimmer 1K Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 1K Ohm 10% 1W 22ElecTurn 2.92mm 33.22 X 4.83 X 8mm Pin Thru-Hole Tube
