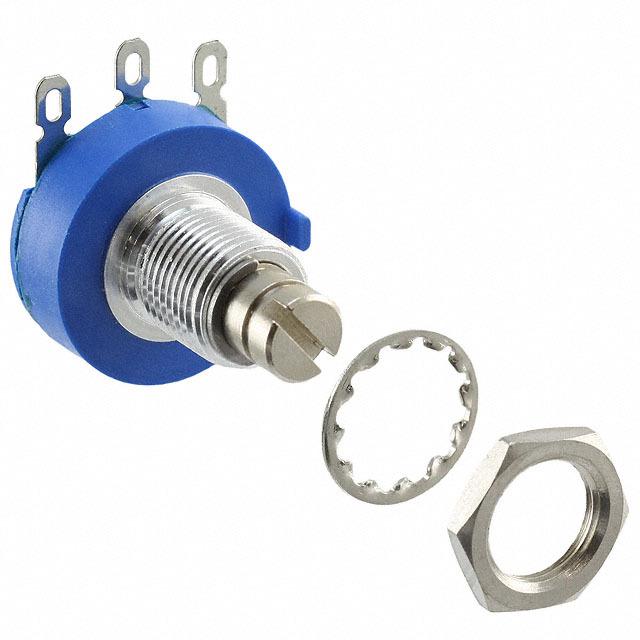

Res Cermet POT 100KΩ 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
100k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Kierros Cermet 2W Solder Lug
得捷:
POT 100K OHM 2W CERMET LINEAR
艾睿:
Res Cermet POT 100K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
安富利:
Res Cermet POT 100K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
Verical:
Res Cermet POT 100K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
MASTER:
Res Cermet POT 100K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
Electro Sonic:
Res Cermet POT 100K Ohm 10% 2W 1Elec/1MechTurn 6.35mm 22.23 X 19.05 X 23.55mm Solder Lug Panel Mount
容差 ±10 %
额定功率 2 W
电阻 100 kΩ
安装方式 Panel
封装 Round - 0.750" Dia x 0.250" H 19.05mm x 6.35mm
长度 22.23 mm
高度 23.55 mm
封装 Round - 0.750" Dia x 0.250" H 19.05mm x 6.35mm
工作温度 -1℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533408050
