392JB250

Res Conductive Plastic POT 250Ω 10% 0.5W1/2W 1MechTurn 3.18mm 12.7 X 34.53mm Pin Panel Mount/Through Hole

392 Series Industrial Potentiometer, Conductive Plastic Element, PC Terminal, 0.5 W Power Rating

Economical potentiometer designed to meet wave soldering applications for mounting to PC boards. Meets flow solderability and washability test requirements. MIL-R-94 standards apply where applicable.

.

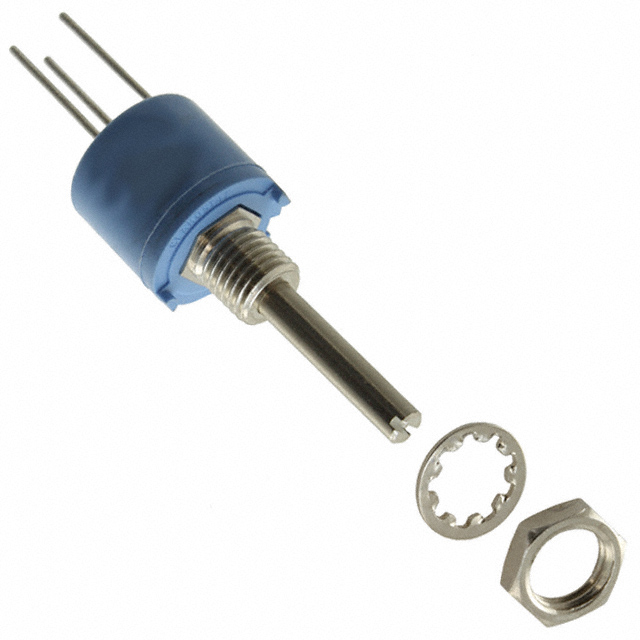

* Resistance Tolerance:** Linear, up to 1 MΩ ±10%, 1M to 5M ±20%. Tapers, up to 250K ±10%, above 250K to 5M ±20%. ** Resistance Range:** 100 Ω to 5 MΩ, linear; 500 Ω to 2 MΩ, tapered. ** Power Rating:** 0.5 watt maximum continuous power rating for linear taper, but voltage not to exceed rating. ** Working Voltage:** 350 VDC across end terminals, but power not to exceed rating. ** Linearity:** ±5% Independent. ** Torque Range:** 0.20 to 2.0 oz. in. ** Shafts, Standard:** 0.125 dia. ** Solvent Resistance:** Housing resistant to trichlorethylene, chlorethene, NU Freon TMS, Freon TMC, carbon tetrachloride, toluene, MEK ethyleacetate and gasoline. ** Series 392JA:** 7/8" long shaft FMS, screwdriver slotted metal shaft and metal bushing, PC terminals. ** Series 392JB:** 7/8" long shaft FMS, screwdriver slotted plastic shaft and plastic bushing, PC terminals.

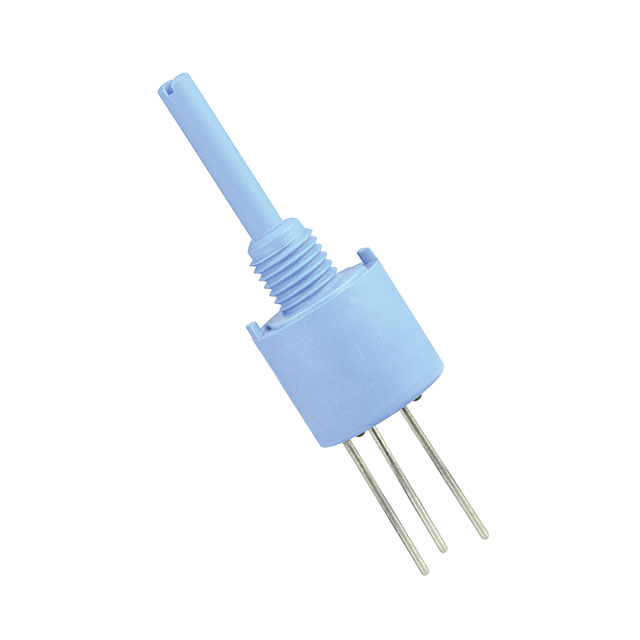

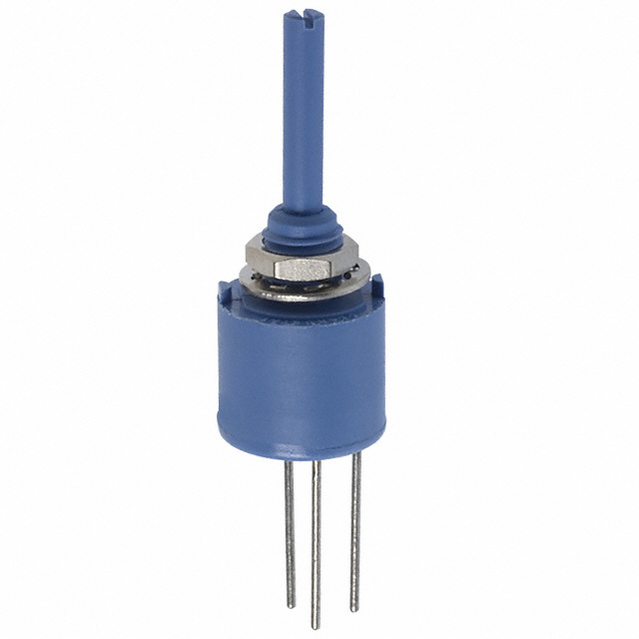

The 392JB series features a 7/8" long shaft FMS, screwdriver slotted plastic shaft and plastic bushing with PC terminals.

These industrial potentiometer have conductive plastic element. And these are useful for medical equipment, telecommunication and manual controls.
