电位计 250 Ohms 10% 0.5W POT CONDUCTIVE PLAST

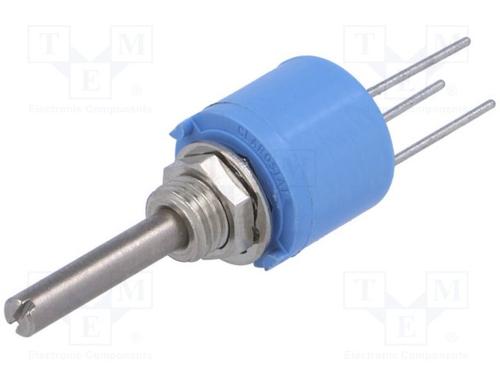

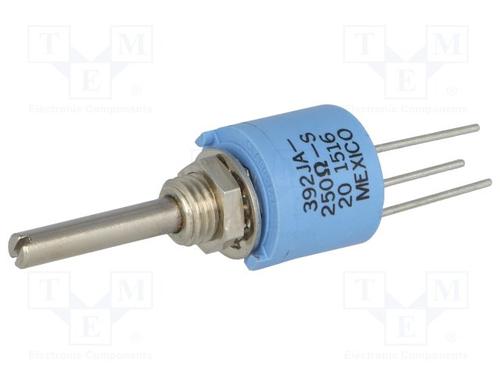

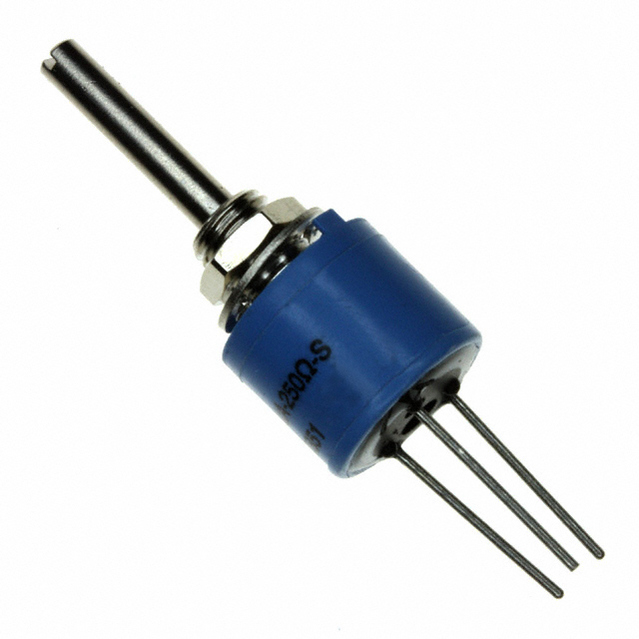

392 Series Industrial Potentiometer, Conductive Plastic Element, PC Terminal, 0.5 W Power Rating

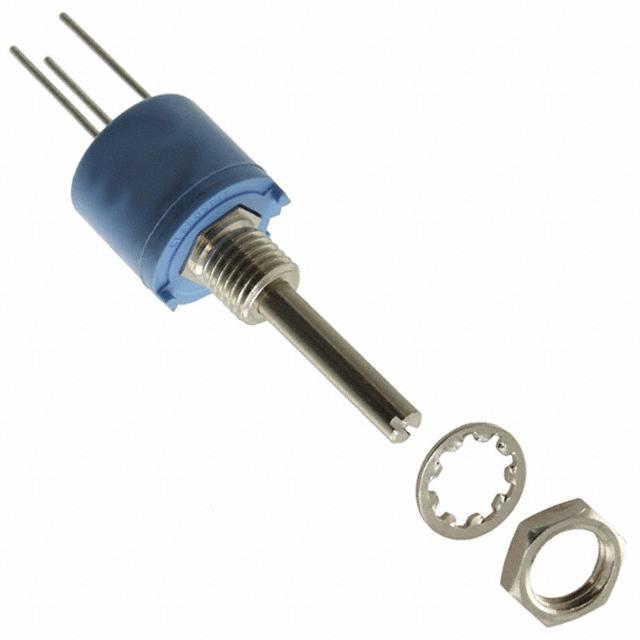

Economical potentiometer designed to meet wave soldering applications for mounting to PC boards. Meets flow solderability and washability test requirements. MIL-R-94 standards apply where applicable.The 392JA series features a 7/8" long shaft FMS, screwdriver slotted metal shaft and metal bushing, PC terminals.
These industrial potentiometer have conductive plastic element. And these are useful for medical equipment, telecommunication and manual controls.
容差 ±10 %
额定功率 0.5 W
电阻 250 Ω
阻值偏差 ±10 %
工作温度Max 120 ℃
工作温度Min -40 ℃
安装方式 PC Board
封装 Round - 0.500" Dia x 1.047" H 12.70mm x 26.59mm
长度 12.3 mm
高度 34.53 mm
封装 Round - 0.500" Dia x 1.047" H 12.70mm x 26.59mm
工作温度 -40℃ ~ 120℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8533408070
