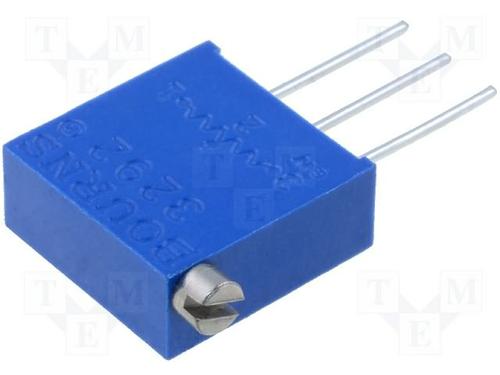

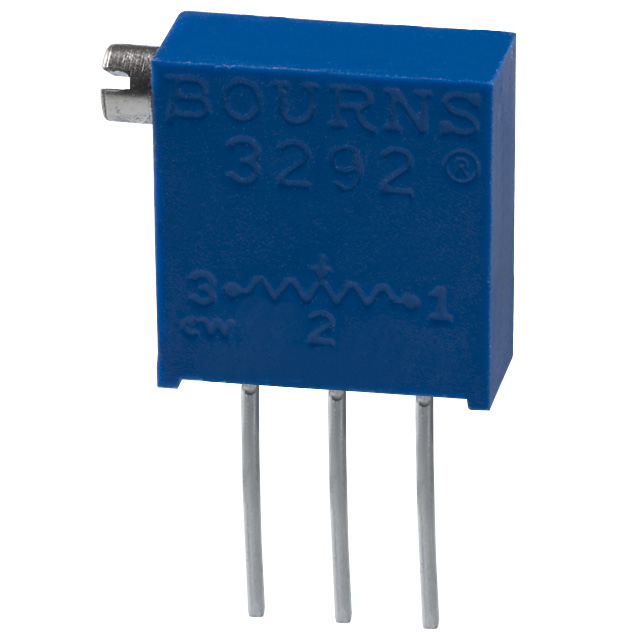

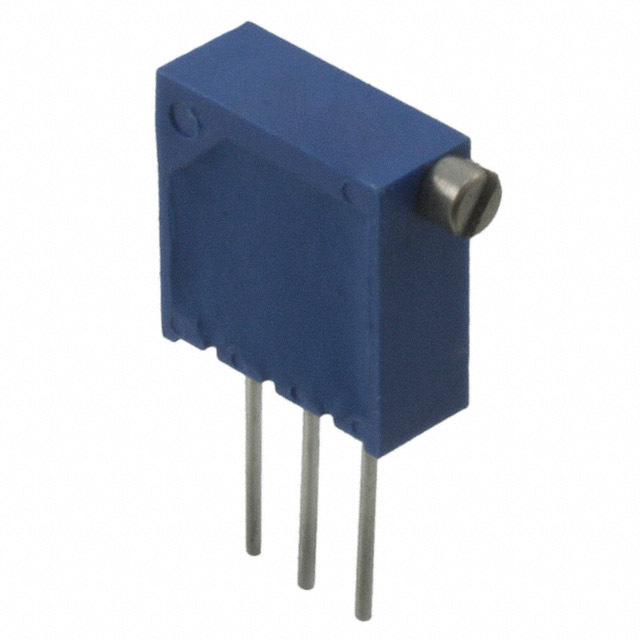

BOURNS 3292X-1-102LF 微调电位器, 1KΩ, 25转, 10%, 通孔安装
1 kOhms 0.5W,1/2W PC 引脚 通孔 微调电位计 金属陶瓷 25.0 匝 侧面调节
得捷:
TRIMMER 1K OHM 0.5W PC PIN SIDE
e络盟:
微调电位器, 1KΩ, 25转, 10%, 通孔安装
艾睿:
Place this 3292X-1-102LF potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This durable part has a power rating of 0.5 1/2 W. This product has a resistance value of 1K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3292X-1-102LF part has a pin termination style. It has a tolerance of 10%. This product is 11.05 mm long, 9.53 mm tall and 3.81 mm deep. This part has an operating temperature of -65 to 150 °C. This device utilizes cermet technology.
安富利:
Res Cermet Trimmer 1K Ohm 10% 1/2W 25ElecTurn 2.29mm 11.05 X 3.81 X 9.53mm Pin Thru-Hole Tube
Chip1Stop:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 3.81 X 9.53mm Pin Thru-Hole Tube
TME:
Potentiometer: mounting; vertical, multiturn; 1kΩ; 500mW; THT; ±10%
Verical:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 3.81 X 9.53mm Pin Thru-Hole Tube
Newark:
# BOURNS 3292X-1-102LF Trimmer Potentiometer, Through Hole, 1 kohm, 500 mW, ± 10%, 3292X Series, 25 Turns, Through Hole
MASTER:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 3.81 X 9.53mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 1K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 11.05 X 3.81 X 9.53mm Pin Thru-Hole Tube
容差 ±10 %
额定功率 500 mW
电阻 1 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
封装 Square - 0.375" L x 0.375" W x 0.150" H 9.53mm x 9.53mm x 3.81mm
长度 11.05 mm
宽度 3.81 mm
高度 9.53 mm
封装 Square - 0.375" L x 0.375" W x 0.150" H 9.53mm x 9.53mm x 3.81mm
颜色 Blue
重量 709 mg
工作温度 -65℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
