Trimmer, Wire Wound, 1W, 50Ω, 5% +/-Tol, -50,50ppm/Cel, 1 Turns, 1/2INCH, RECTANGULAR, 3Pins, ROHS COMPLIANT

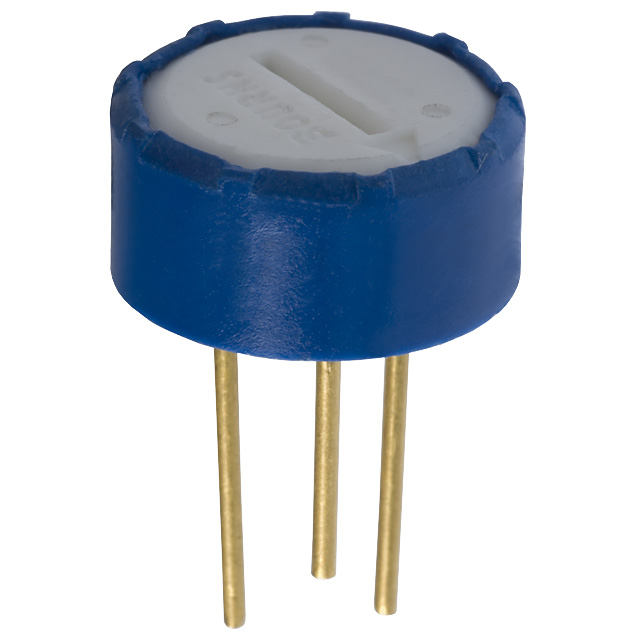

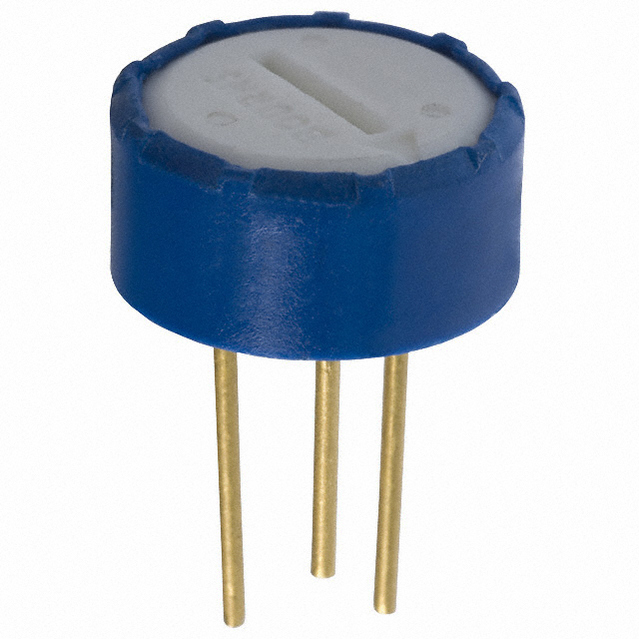

Calibrate the resistance of a circuit with this potentiometer from Bourns. This durable part has a power rating of 1 W. This product has a resistance value of 50 Ohm. Its temperature coefficient is ±50 ppm/°C. This product is 5.97 mm tall with a diameter of 11.43 mm. The 3345P-1-500 part has a pin termination style. This part has an operating temperature of -55 to 150 °C. It has a tolerance of 5%. This device utilizes wirewound technology.
电容 24000 PF
容差 ±5 %
额定功率 1 W
电阻 50 Ω
阻值偏差 ±5 %
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
封装 Round - 0.450" Dia x 0.235" H 11.43mm x 5.97mm
高度 5.97 mm
直径 11.4 mm
封装 Round - 0.450" Dia x 0.235" H 11.43mm x 5.97mm
颜色 Blue
重量 1.13 g
工作温度 -55℃ ~ 150℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533310000
