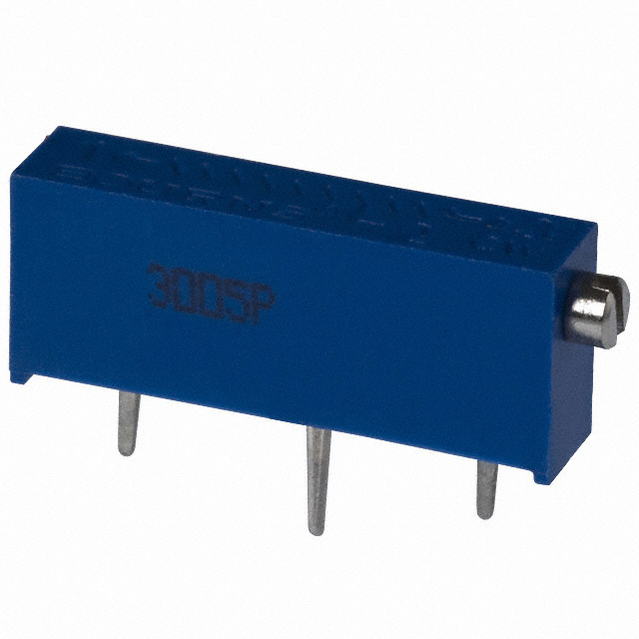

3/4矩形可调电位器微调电位器 3/4 Rectangular Trimpot Trimming Potentiometer
5 kOhms 1W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Wirewound 20 Turn Side Adjustment
得捷:
TRIMMER 5K OHM 1W PC PIN SIDE
艾睿:
Res Wirewound Trimmer 5K Ohm 10% 1W 20ElecTurns 2.54mm 26.67 X 7.92mm Pin Panel Mount/Through Hole Tube
安富利:
Res Wirewound Trimmer 5K Ohm 10% 1W 20ElecTurn 2.54mm 26.67 X 7.92mm Pin Panel Mount/Through Hole Tube
容差 ±10 %
额定功率 1 W
电阻 5 kΩ
工作温度Max 125 ℃
工作温度Min -65 ℃
安装方式 Through Hole
封装 Rectangular - 0.750" L x 0.160" W x 0.310" H 19.05mm x 4.06mm x 7.87mm
封装 Rectangular - 0.750" L x 0.160" W x 0.310" H 19.05mm x 4.06mm x 7.87mm
工作温度 -65℃ ~ 125℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
