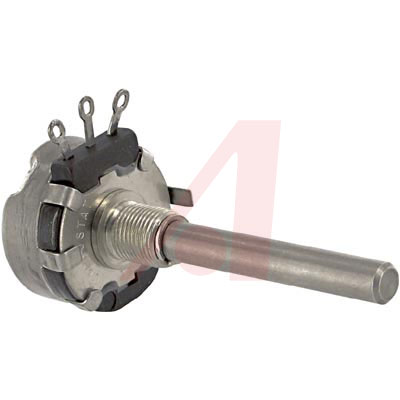

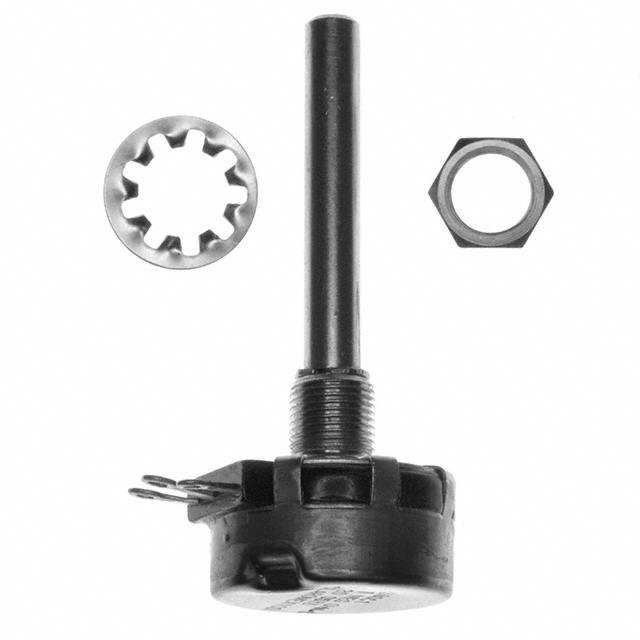

380C11MEG

Res Conductive Plastic POT 1M Ohm 20% 2W 1Elec/1MechTurn 6.35mm 65.07 X 27.78mm Solder Lug Panel Mount

These quiet, precision-made potentiometers are made by a controlled process that virtually insures a reliable, homogeneous and strain-free resistance element with 1% dynamic noise and 5% independent linearity. All have stainless steel shafts. Type C1 has 2" round shaft FMS, 3/8" long bushing with 3/8" × 32NEF-2A thread. Type C2 has 5/8" screwdriver slotted shaft FMS with a 1/2" split locking bushing. Type C3 has 7/8" screwdriver shaft FMS, 3/8" long bushing with 3/8" × 32NEF-2A thread.

.

* Resistance Tolerance:** Up to 1 megohm ±10%, above ±20%. ** Dielectric Strength:** 1000 VAC. ** Weight:** 1 oz.
