3549S-1AA-102B参数规格_中文资料_数据手册PDF

3549S-1AA-102B概述

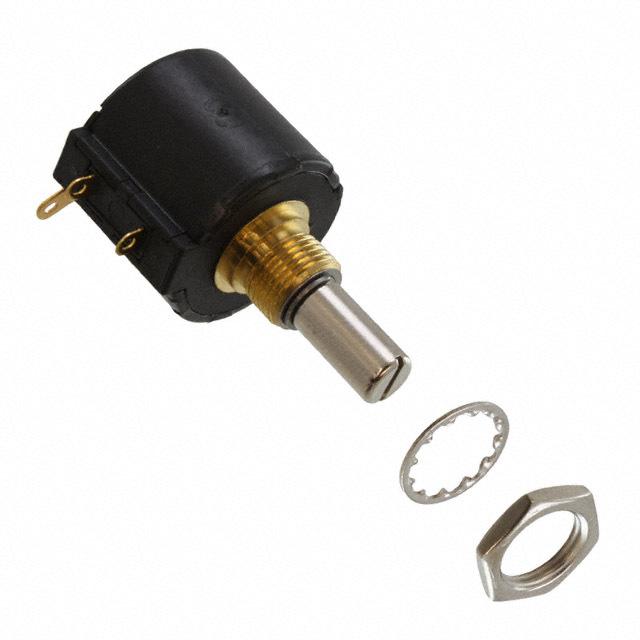

Res Wirewound POT 1KΩ 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

1k 欧姆 1 组线性面板安装电位计无 10.0 匝绕线 2W 焊片

艾睿:
Res Wirewound POT 1K Ohm 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

Verical:
Res Wirewound POT 1K Ohm 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

MASTER:
Res Wirewound POT 1K Ohm 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

Electro Sonic:
Res Wirewound POT 1K Ohm 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

3549S-1AA-102B中文资料参数规格

技术参数

容差 ±3 %

额定功率 2 W

电阻 1 kΩ

封装参数

安装方式 Solder Lug, Panel

封装 Round - 0.885" Dia x 0.780" H 22.48mm x 19.81mm

外形尺寸

高度 27.5 mm

封装 Round - 0.885" Dia x 0.780" H 22.48mm x 19.81mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±50 ppm/℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3549S-1AA-102B

型号： 3549S-1AA-102B

制造商： Bourns J.W. Miller 伯恩斯

描述：Res Wirewound POT 1KΩ 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray
