3549S-1AA-202B参数规格_中文资料_数据手册PDF

3549S-1AA-202B概述

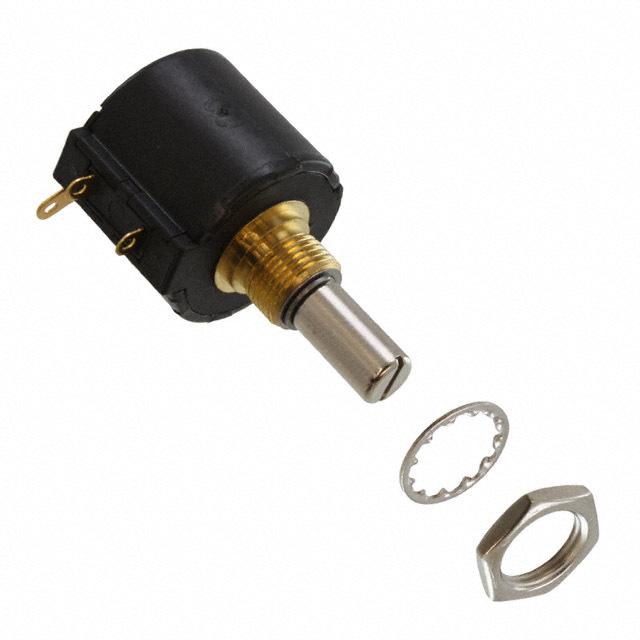

Res Wirewound POT 2KΩ 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray

2k Ohm 1 Gang Linear Panel Mount Potentiometer None 10 Kierros Wirewound 2W Solder Lug

得捷:
POT 2K OHM 2W WIREWOUND LINEAR

安富利:
Res Wirewound POT 2K Ohm 3% 2W 10Elec/10MechTurn 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Plastic Tray

3549S-1AA-202B中文资料参数规格

技术参数

容差 ±3 %

额定功率 2 W

电阻 2 kΩ

封装参数

安装方式 Solder Lug, Panel

封装 Round - 0.885" Dia x 0.780" H 22.48mm x 19.81mm

外形尺寸

封装 Round - 0.885" Dia x 0.780" H 22.48mm x 19.81mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±50 ppm/℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3549S-1AA-202B

型号： 3549S-1AA-202B

制造商： Bourns J.W. Miller 伯恩斯

描述：Res Wirewound POT 2KΩ 3% 2W 10Elec/10MechTurns 6.35mm 40.43 X 22.48 X 27.5mm Solder Lug Panel Mount Tray
