Res Cermet Trimmer 20KΩ 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.32 X 7.37mm Pin Thru-Hole Tube
0.25W，1/4W PC 引脚 通孔 微调电位计 金属陶瓷 匝 顶部调节
艾睿:

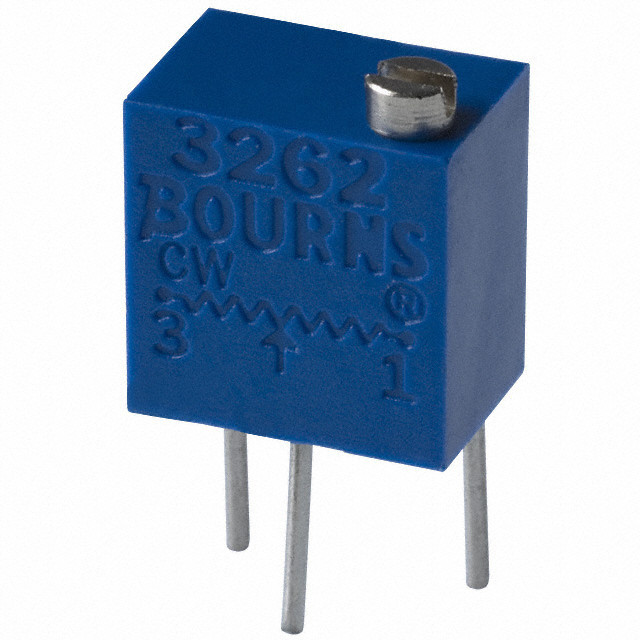

This 3262W-1-203 potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 20K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It has a tolerance of 10%. This part has an operating temperature of -65 to 150 °C. The 3262W-1-203 part has a pin termination style. This product is 6.35 mm long, 7.37 mm tall and 4.32 mm deep. This device utilizes cermet technology.
安富利:
SEALED,CERMET,1/4IN,12TURNS,20K,10%,SIDE,W,BULK
Chip1Stop:
Res Cermet Trimmer 20K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.32 X 7.37mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 20K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.32 X 7.37mm Pin Thru-Hole Tube
MASTER:
Res Cermet Trimmer 20K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.32 X 7.37mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 20K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.32 X 7.37mm Pin Thru-Hole Tube
