3292W-1-203

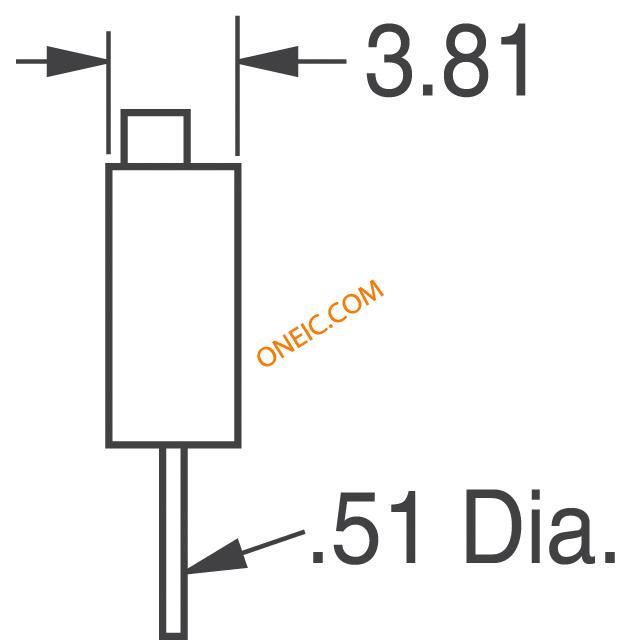

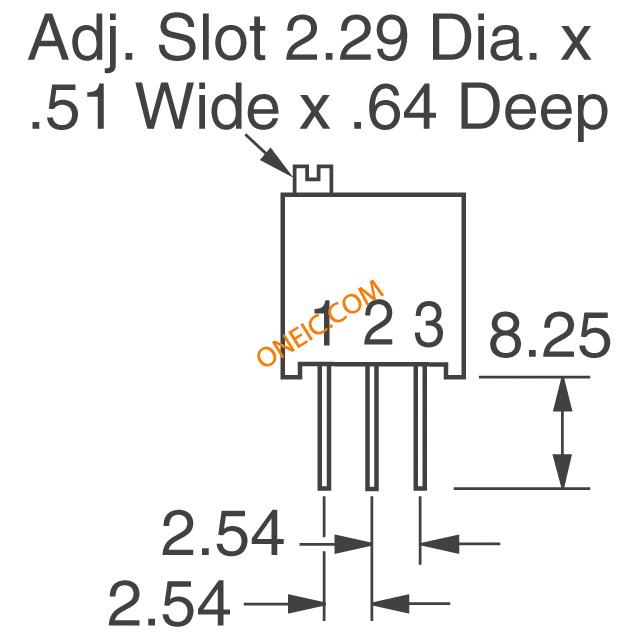

Res Cermet Trimmer 20KΩ 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube

20 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25 Turn Top Adjustment

艾睿:
Optimize functionality in your circuit by placing this 3292W-1-203 potentiometer from Bourns at critical points. This product has a resistance value of 20K Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device is made with cermet technology. This part has an operating temperature of -65 to 150 °C. This product is 9.53 mm long, 11.05 mm tall and 3.81 mm deep. The 3292W-1-203 part has a pin termination style. It has a tolerance of 10%.

Verical:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurns 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube

MASTER:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurns 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube

Electro Sonic:
Res Cermet Trimmer 20K Ohm 10% 0.5W1/2W 25ElecTurns 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
