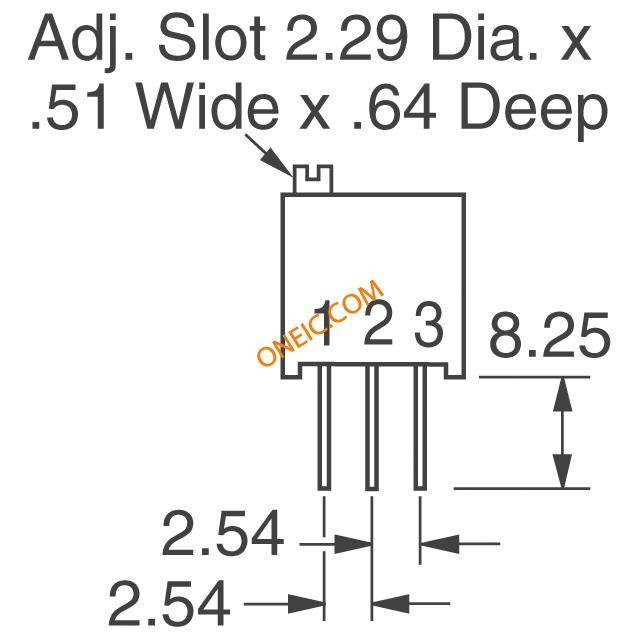

Res Cermet Trimmer 10KΩ 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
艾睿:

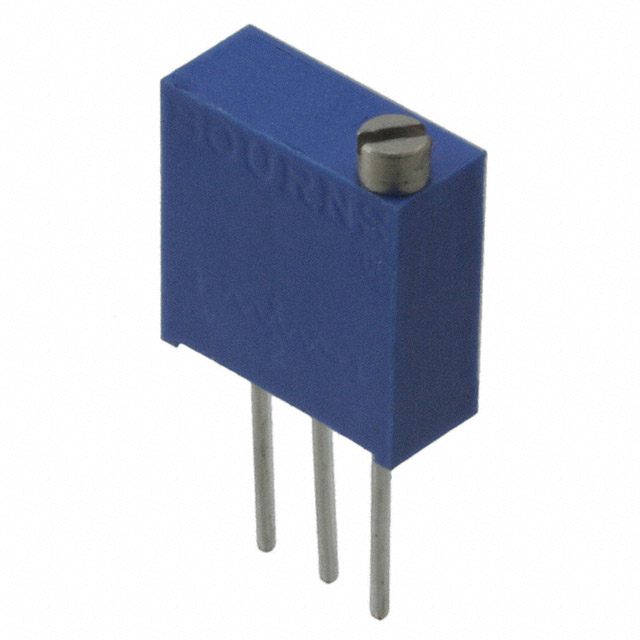

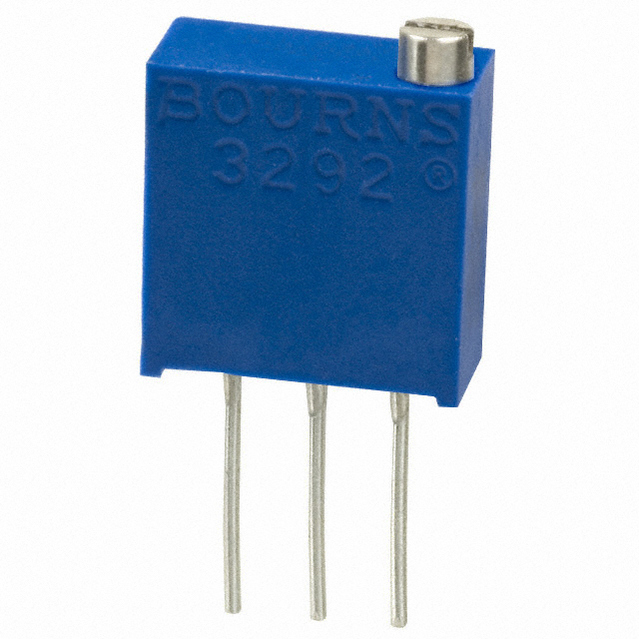

Infrequently adjust the resistor value for your circuit with this 3292W-1-103 potentiometer from Bourns. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 10K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The 3292W-1-103 part has a pin termination style. This product is 9.53 mm long, 11.05 mm tall and 3.81 mm deep. It has a tolerance of 10%. This part has an operating temperature of -65 to 150 °C. This device utilizes cermet technology.
Verical:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
Newark:
# BOURNS 3292W-1-103 Trimmer Potentiometer, Square, 10 kohm, 500 mW, ± 10%, 3292W Series, 25 Turns, Through Hole
MASTER:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 10K Ohm 10% 0.5W1/2W 25ElecTurn 2.29mm 9.53 X 3.81 X 11.05mm Pin Thru-Hole Tube
额定电压DC 500 V
容差 ±10 %
额定功率 0.5 W
电阻 10 kΩ
阻值偏差 ±10 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole

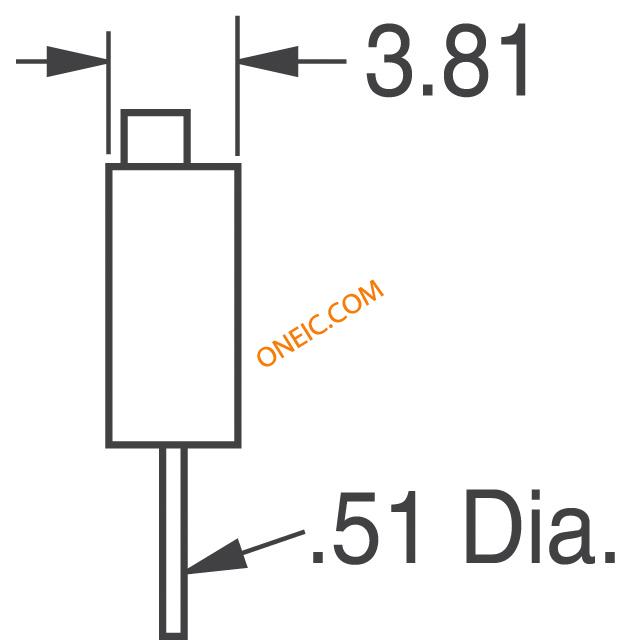

封装 Square - 0.375" L x 0.375" W x 0.150" H 9.53mm x 9.53mm x 3.81mm
长度 9.53 mm
宽度 3.81 mm
高度 11.05 mm
封装 Square - 0.375" L x 0.375" W x 0.150" H 9.53mm x 9.53mm x 3.81mm
颜色 Blue
重量 709 mg
工作温度 -65℃ ~ 150℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2016/06/20
