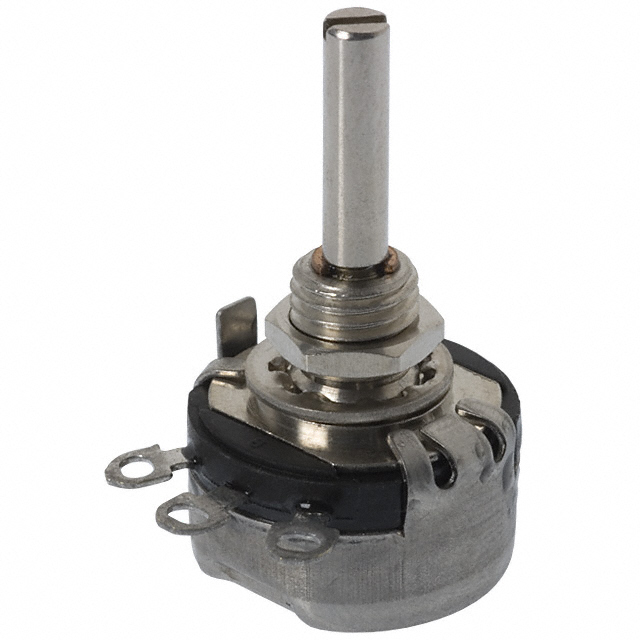

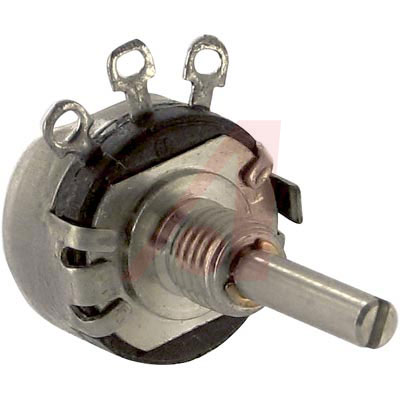

381N250K

Res Conductive Plastic POT 250KΩ 10% 1W 1MechTurn 3.18mm 28.97 X 15.88 X 22.23mm Solder Lug Panel Mount

381N has plain 1/4" long bushing with 1/4-32NEF-2A thread and 1/8" dia. 3/4" FMS long shaft. 381L is a locking bushing that has 3/8" long bushing with 1/4-32NEF-2A thread and long 1/8" dia. 7/16" FMS shaft. D381 is the same as the 381N, but is dual ganged using the same resistance value for both sections. Dimensions are the same as 381N except total depth is 49/64" ±1/32. 381NS is the same as the 381N except it includes a factory attached SPST switch 1 A, 125 VAC/VDC. Dust and splash proof housing. Cover is sealed to base with epoxy seal. Terminals are molded into base and sealed for solderability per MIL-STD-202, Method 208B.

.

* Resistance Tolerance:** ±10% through 500K; ±20% above 500K.

* Precision Machined from Corrosion Resistant and Non-Magnetic Materials

* Rotational Life 25,000 Cycles

* Homogeneous, Strain-Free Thick-Film Resistance Element with 1% Dynamic Noise, 5% Independent Linearity
