Res Wirewound Trimmer 1KΩ 5% 1W 25ElecTurn 1.52mm 10.55 X 3.81 X 9.53mm Pin Thru-Hole Tube
1 kOhms 1W PC 引脚 通孔 微调电位计 绕线 25.0 匝 侧面调节
艾睿:

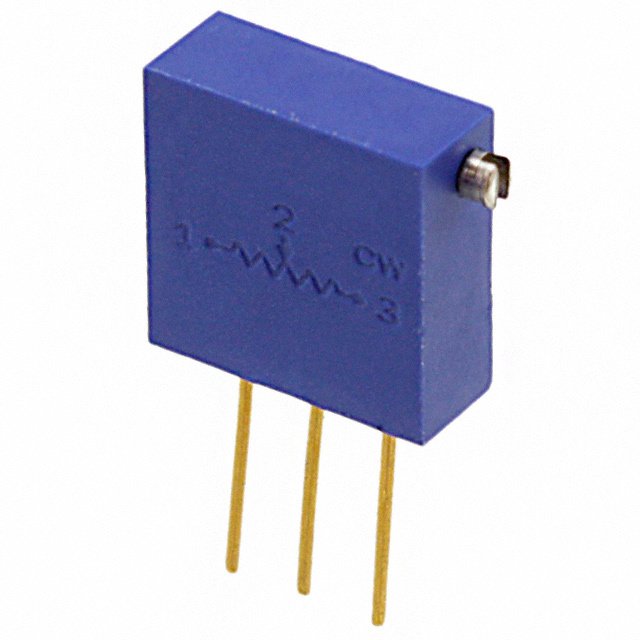

Optimization and calibration of resistance in a circuit has never been easier with this 3290H-1-102 potentiometer from Bourns! This product has a resistance value of 1K Ohm. This dependable part has a power rating of 1 W. Its temperature coefficient is ±50 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -65 to 150 °C. The 3290H-1-102 part has a pin termination style. This device utilizes wirewound technology. This product is 10.55 mm long, 9.53 mm tall and 3.81 mm deep. It has a tolerance of 5%.
安富利:
Res Wirewound Trimmer 1K Ohm 5% 1W 25ElecTurn 1.52mm 10.55 X 3.81 X 9.53mm Pin Thru-Hole Tube
Newark:
# BOURNS 3290H-1-102 Trimmer Potentiometer, Multiturn, 1 kohm, 1 W, ± 5%, Trimpot 3290 Series, 25 Turns, Through Hole
触点数 3
额定电压DC 500 V
容差 ±5 %
额定功率 1 W
电阻 1 KΩ
阻值偏差 ±5 %
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
长度 10.55 mm
宽度 3.81 mm
高度 9.53 mm
工作温度 -65℃ ~ 150℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
