3/8" 方形 Trimpot® 微调电位计 - 3290 系列**3290 系列多转 Trimpot® 微调电位计,用于电子设备中各种类型的不同电路调整。 3290 系列的应用包括:测量生产设备中的线性距离、角度或旋转,工业测试和测量设备以及医疗设备。 线绕元件 为板冲洗密封 工业标准 列在 QPL 上,对于样式 R24,符合 MIL-R-27208,对于 RTR,符合 High-Rel MIL-R-39015 ### 多转 10mm 金属陶瓷

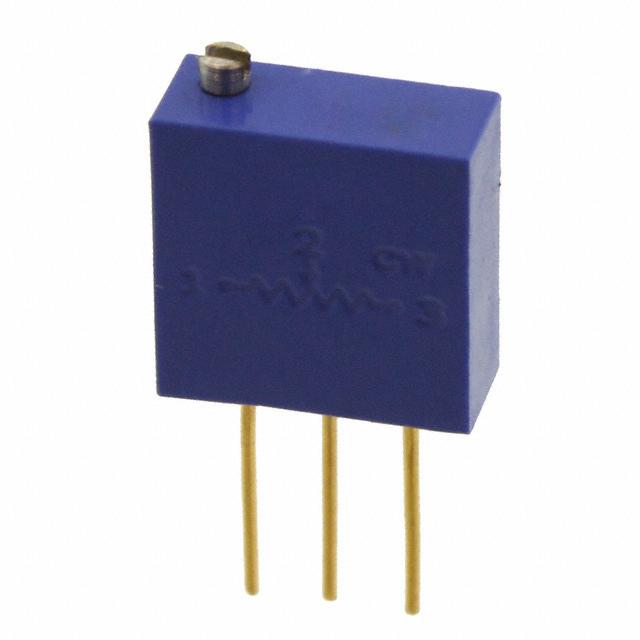

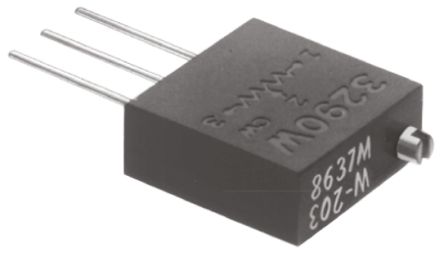

**3/8" 方形 Trimpot® 微调电位计 - 3290 系列**
3290 系列多转 Trimpot® 微调电位计,用于电子设备中各种类型的不同电路调整。 3290 系列的应用包括:测量生产设备中的线性距离、角度或旋转,工业测试和测量设备以及医疗设备。
线绕元件
为板冲洗密封
工业标准
列在 QPL 上,对于样式 R24,符合 MIL-R-27208,对于 RTR,符合 High-Rel MIL-R-39015
欧时:
Bourns 3290 系列 25 转 通孔 微调电阻器 3290W-1-202, 带焊针接端, 2kΩ ±5%, 1W, ±50ppm/°C
艾睿:
Calibrate the resistance of a circuit with this 3290W-1-202 potentiometer from Bourns. This part has a power rating of 1 W. This product has a resistance value of 2K Ohm. Its temperature coefficient is ±50 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -65 to 150 °C. It has a tolerance of 5%. This product is 9.53 mm long, 10.55 mm tall and 3.81 mm deep. This device is made with wirewound technology. The 3290W-1-202 part has a pin termination style.
安富利:
Res Wirewound Trimmer 2K Ohm 5% 1W 25ElecTurn 1.52mm 9.53 X 3.81 X 10.55mm Pin Thru-Hole Tube
