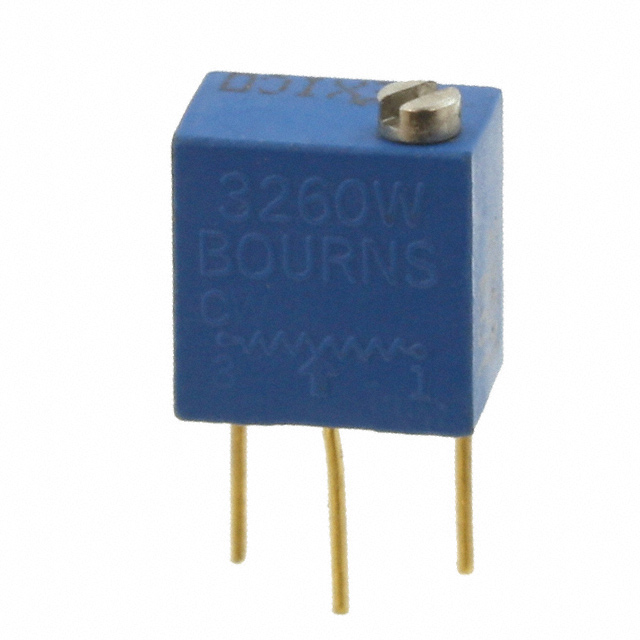

微调电阻 - 通孔 1/4" 2Kohms 5% SQ Wirewound Sealed
2 kOhms 0.25W,1/4W PC 引脚 通孔 微调电位计 绕线 11.0 匝 顶部调节
艾睿:
This 3260W-1-202 potentiometer from Bourns is your solution to resistance calibration in a circuit. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 2K Ohm. Its temperature coefficient is ±70 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature of -65 to 150 °C. This device is made with wirewound technology. The 3260W-1-202 part has a pin termination style. This product is 6.35 mm long, 7.24 mm tall and 4.32 mm deep. It has a tolerance of 5%.
安富利:
Res Wirewound Trimmer 2K Ohm 5% 1/4W 11ElecTurn 1.78mm 6.35 X 4.32 X 7.24mm Pin Thru-Hole Tube
容差 ±5 %
额定功率 0.25 W
电阻 2.00 kΩ
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
封装 Square - 0.250" L x 0.170" W x 0.250" H 6.35mm x 4.32mm x 6.35mm
长度 6.35 mm
宽度 4.32 mm
高度 7.24 mm
封装 Square - 0.250" L x 0.170" W x 0.250" H 6.35mm x 4.32mm x 6.35mm
工作温度 -65℃ ~ 150℃
温度系数 ±70 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
