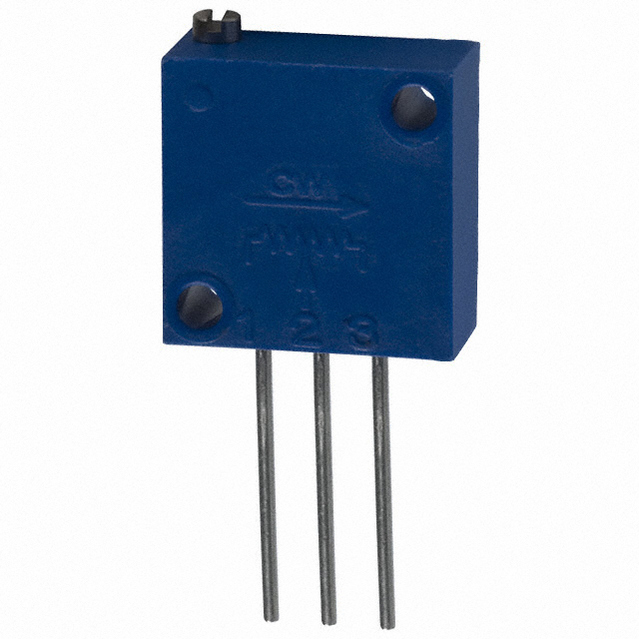

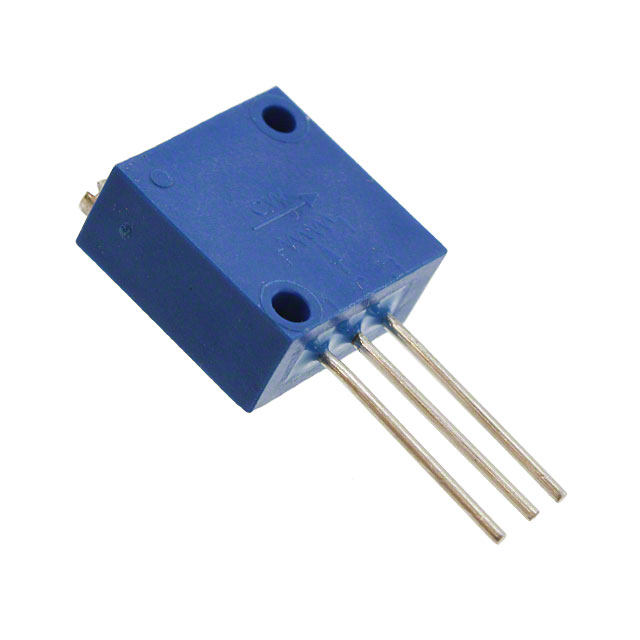

Res Wirewound Trimmer 2KΩ 5% 1W 25ElecTurn 20.32 X 7.62 X 14.99mm Pin Panel Mount/Through Hole Tube
2 kOhms 1W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Wirewound 25 Turn Top Adjustment
得捷:
TRIMMER 2K OHM 1W PC PIN TOP ADJ
容差 ±5 %
额定功率 1 W
电阻 2 kΩ
阻值偏差 ±5 %
安装方式 Through Hole
封装 Square - 0.500" L x 0.500" W x 0.220" H 12.70mm x 12.70mm x 5.59mm
长度 12.7 mm
宽度 5.59 mm
高度 12.7 mm
封装 Square - 0.500" L x 0.500" W x 0.220" H 12.70mm x 12.70mm x 5.59mm
颜色 Blue
重量 1.70 g
工作温度 -65℃ ~ 150℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准
含铅标准 无铅
