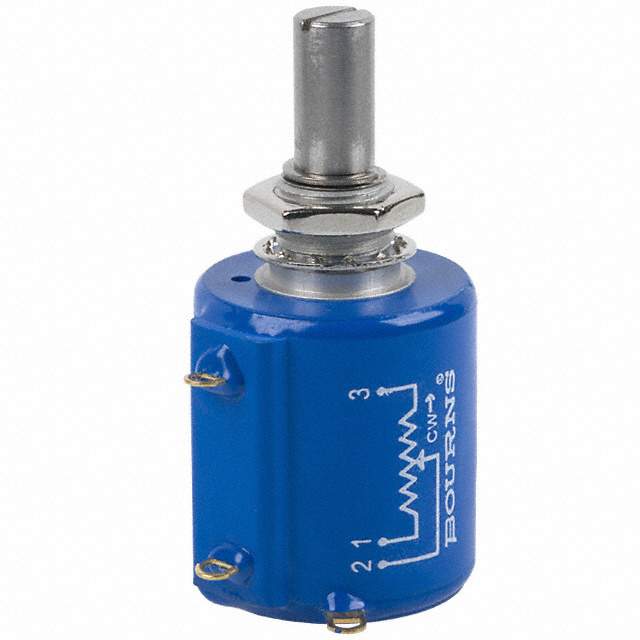

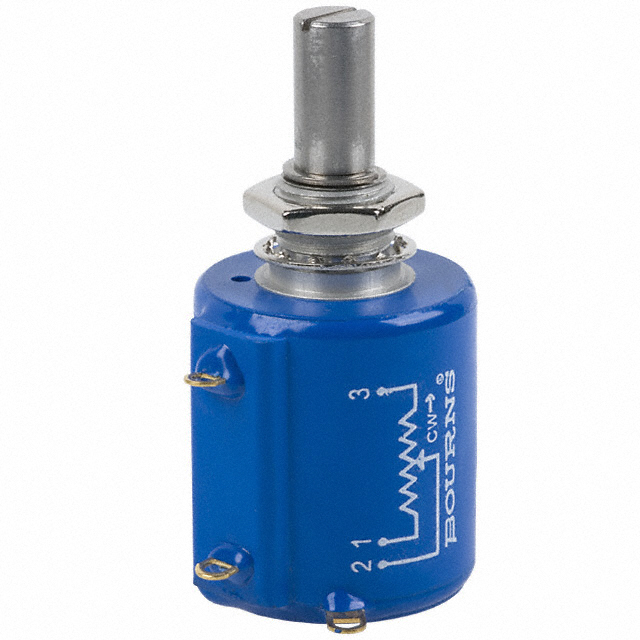

BOURNS 3500S-2-501L 绕线电阻, 500V 10转 2W 3%
500 Ohm 1 Gang Linear Panel Mount Potentiometer None 10 Kierros Wirewound 2W Solder Lug
艾睿:
Res Wirewound POT 500 Ohm 3% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04mm Solder Lug Panel Mount
安富利:
Res Wirewound POT 500 Ohm 3% 2W 10Elec/10MechTurn 6.34mm 22.23 X 46.04mm Solder Lug Panel Mount
Verical:
Res Wirewound POT 500 Ohm 3% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04mm Solder Lug Panel Mount
Newark:
# BOURNS 3500S-2-501L Rotary Potentiometer, Wirewound, 500 ohm, 2 W, ± 3%, 3500S Series, 10 Turns, Linear
MASTER:
Res Wirewound POT 500 Ohm 3% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04mm Solder Lug Panel Mount
Electro Sonic:
Res Wirewound POT 500 Ohm 3% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04mm Solder Lug Panel Mount
额定电压DC 500 V
容差 ±3 %
额定功率 2 W
电阻 500 Ω
阻值偏差 ±3 %
工作温度Max 125 ℃
工作温度Min 1 ℃
安装方式 Solder Lug, Panel
封装 Round - 0.875" Dia x 1.000" H 22.23mm x 25.40mm
长度 46.04 mm
封装 Round - 0.875" Dia x 1.000" H 22.23mm x 25.40mm
工作温度 1℃ ~ 125℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8533310000
