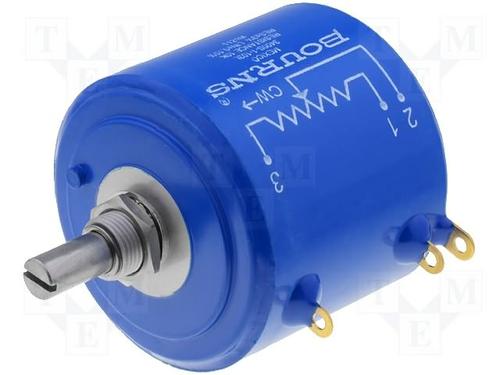

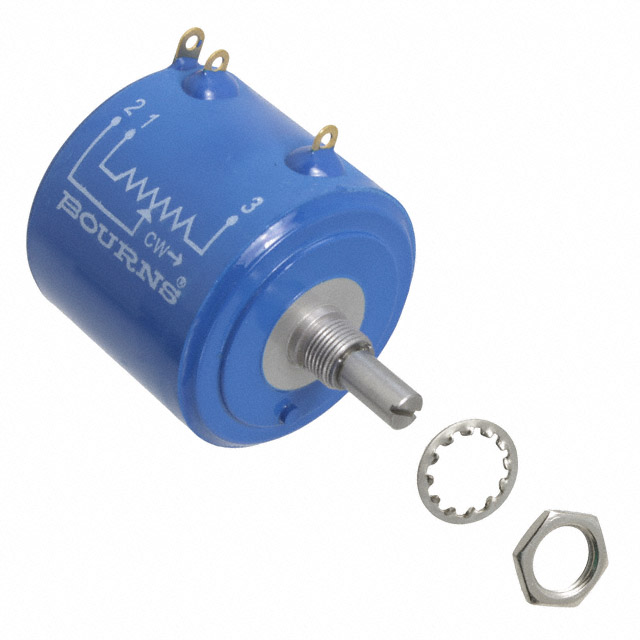

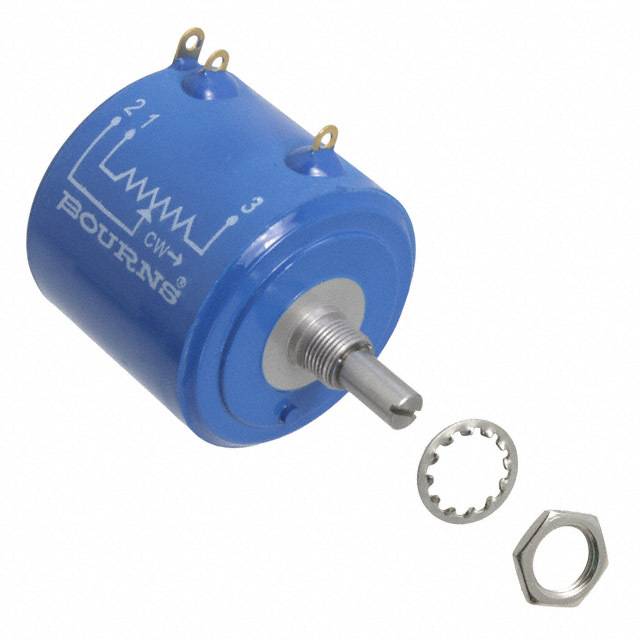

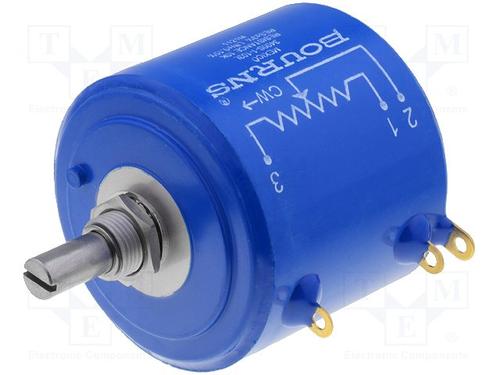

Res POT 2KΩ 3% 5W 10Elec/10MechTurn 6.34mm 65.09 X 46.04 X 52.39mm Solder Lug Panel Mount
This potentiometer from Bourns is designed to optimize functionality and calibrate the resistance in your circuit. This product has a resistance value of 2K Ohm. This dependable part has a power rating of 5 W. Its temperature coefficient is ±20 ppm/°C. This part has an operating temperature of 1 to 125 °C. The 3400S-1-202L part has a solder lug termination style. It has a tolerance of 3%. This product is 65.09 mm long, 52.39 mm tall and 46.04 mm deep.
额定电压DC 500 V
容差 ±3 %
额定功率 5 W
电阻 2 KΩ
阻值偏差 ±3 %
工作温度Max 125 ℃
工作温度Min 1 ℃
安装方式 Solder Lug, Panel
封装 Round - 1.813" Dia x 1.750" H 46.04mm x 44.45mm
长度 65.09 mm
宽度 46.04 mm
高度 52.39 mm
封装 Round - 1.813" Dia x 1.750" H 46.04mm x 44.45mm
工作温度 1℃ ~ 125℃
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
