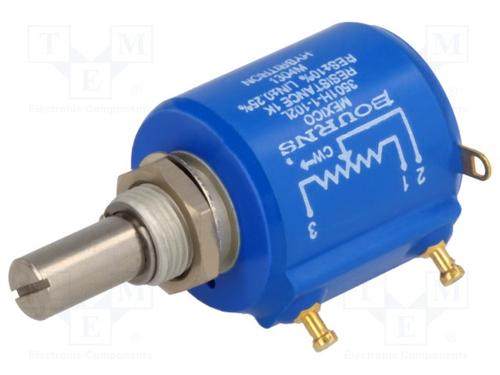

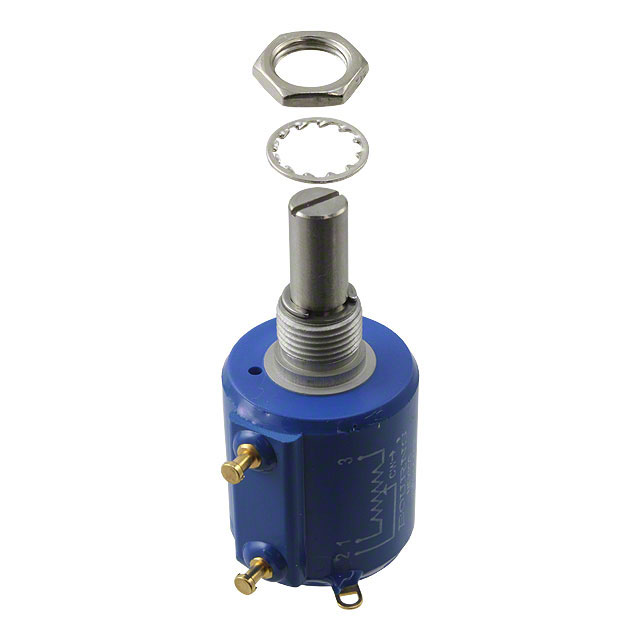

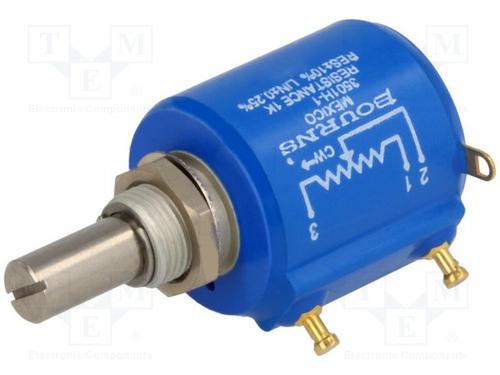

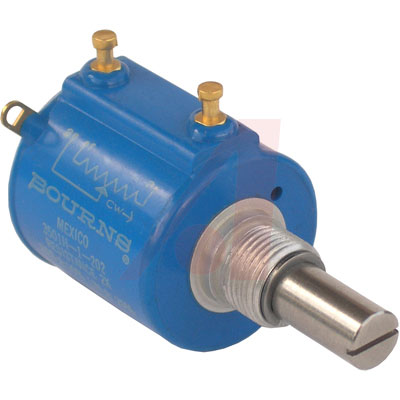

3501H-1-102L

BOURNS  3501H-1-102L  绕线电阻, 500V 10转 2W 10%

10-Turn, 2 Watt — 7⁄8" dia.

**Specifications**

* Operating Temperature Range: +1°C to +125°C

* Temperature Coefficient: ±100 ppm/°C

* Resistance Tolerance: ±10%

* Rotational Life No Load: 4,000,000 Shaft Revolutions

**Features**

* Bushing Mount

* Sealable

* Non-Standard Features and Specifications Available

* Optional High Torque Feature

* Optional Center Tap Feature

* Gangable

艾睿:
Res Hybritron POT 1K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

Allied Electronics:
Precision Pot; 10T Hybrid-Bush

安富利:
Res Hybritron POT 1K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

TME:
Potentiometer: shaft; 1kΩ; 2W; ±10%; 6.35mm; linear; Hybritron®

Verical:
Res Hybritron POT 1K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

Newark:
# BOURNS  3501H-1-102L  Rotary Potentiometer, Hybriton®, 1 kohm, 2 W, ± 10%, 3501H Series, 10 Turns, Linear

MASTER:
Res Hybritron POT 1K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

Electro Sonic:
Res Hybritron POT 1K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount
