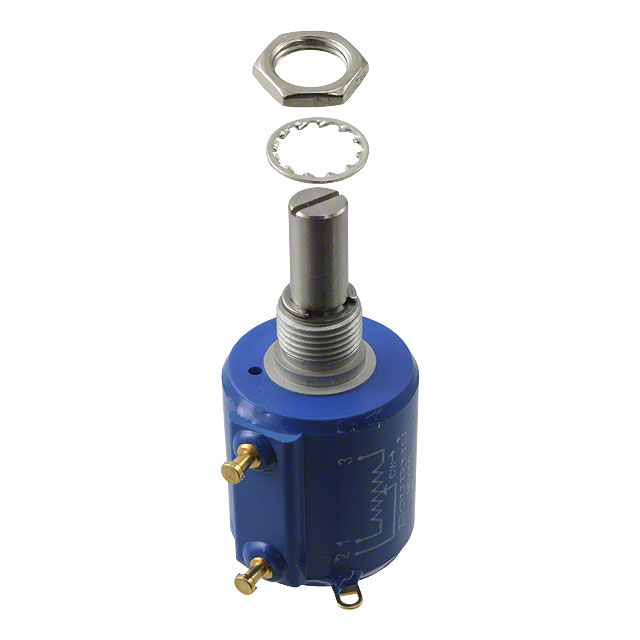

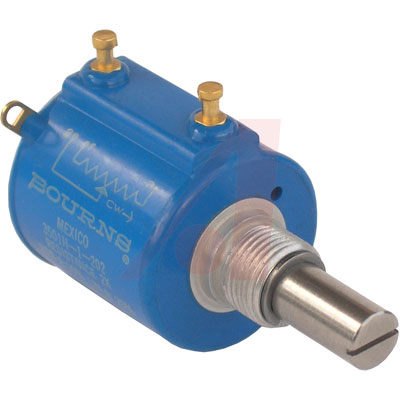

3501H-1-502L

BOURNS  3501H-1-502L  绕线电阻, 500V 10转 2W 10%

10-Turn, 2 Watt — 7⁄8" dia.

**Specifications**

* Operating Temperature Range: +1°C to +125°C

* Temperature Coefficient: ±100 ppm/°C

* Resistance Tolerance: ±10%

* Rotational Life No Load: 4,000,000 Shaft Revolutions

**Features**

* Bushing Mount

* Sealable

* Non-Standard Features and Specifications Available

* Optional High Torque Feature

* Optional Center Tap Feature

* Gangable

艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 3501H-1-502L potentiometer from Bourns is your solution! This durable part has a power rating of 2 W. This product has a resistance value of 5K Ohm. Its temperature coefficient is ±100 ppm/°C. The 3501H-1-502L part has a turret termination style. It has a tolerance of 10%. This product is 46.04 mm long and 28.23 mm tall with a diameter of 22.23 mm. This part has an operating temperature of 1 to 125 °C. This device utilizes hybritron technology.

Allied Electronics:
Precision Pot; 10T Hybrid-Bush

Chip1Stop:
Res Hybritron POT 5K Ohm 10% 2W 10Elec/10MechTurn 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

Verical:
Res Hybritron POT 5K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount

Newark:
Rotary Potentiometer, Hybriton®, 5 kohm, 2 W, ± 10%, 3501H Series, 10 Turns, Linear

Electro Sonic:
Res Hybritron POT 5K Ohm 10% 2W 10Elec/10MechTurns 6.34mm 22.23 X 46.04 X 28.23mm Turret Panel Mount
