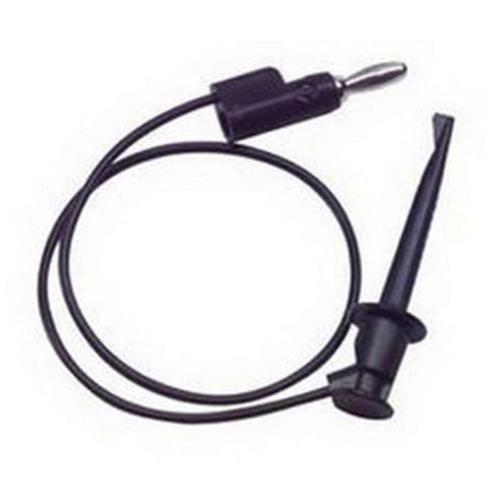

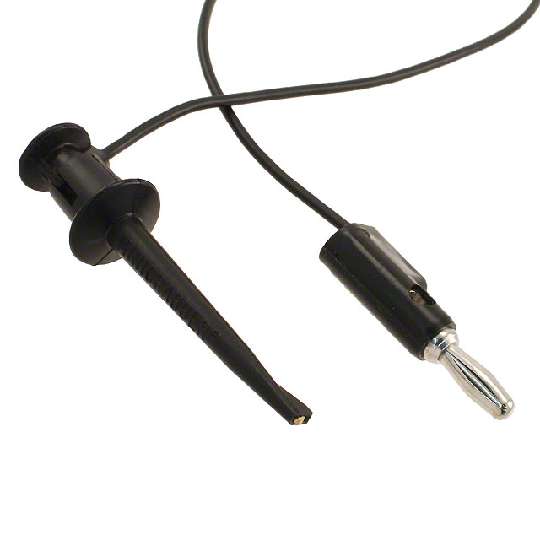

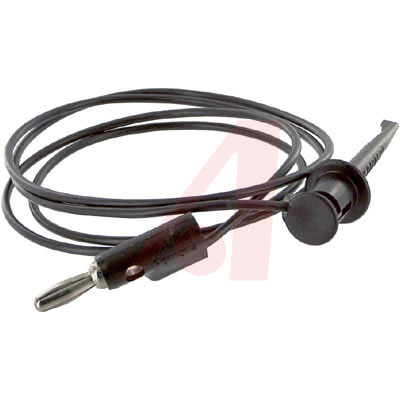

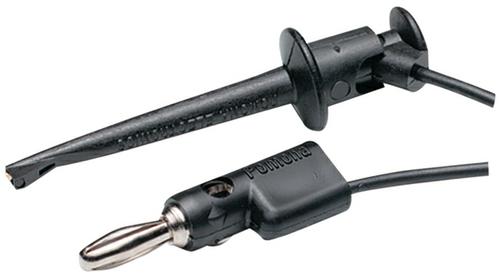

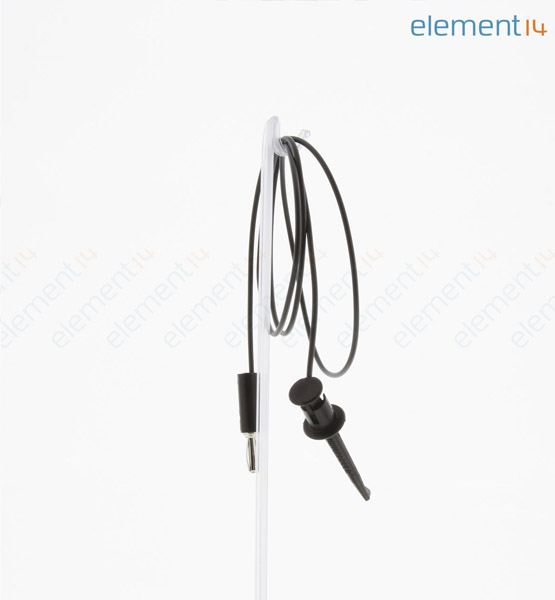

POMONA 3782-36-0 测试线, 迷你采集卡, 钩式夹至4mm香蕉插头, 黑色, 60 V, 5 A, 914.4 mm
36.0"（914.40mm） 香蕉插头，单，可堆叠 至 迷你型钩 插接线 300VDC
欧时:
3782-36-0,MINIGRABBER/BANANA PLUG BLAC
得捷:
TEST LEAD BANANA TO GRABBER 36"
e络盟:
测试线
艾睿:
This device has a maximum current rating of 5 A. This has a Test Clip to Stack-Up Banana connector. Its wire is 20 AWG. It has a patch cord cable.
Allied Electronics:
Banana Plug; Banana Plug; Beryllium Copper; Gold Plated; Glass Filled Nylon
Chip1Stop:
Cable Assembly Patch Cord 0.91m 20AWG Test Clip to Stack-Up Banana PL-PL
Verical:
Cable Assembly Patch Cord 0.91m 20AWG Test Clip to Stack-Up Banana PL-PL
Newark:
# POMONA 3782-36-0 Test Lead, Minigrabber, Hook Clip to 4mm Banana Plug, Black, 60 V, 5 A, 914.4 mm
MASTER:
Cable Assembly Patch Cord 0.91m 20AWG Test Clip to Stack-Up Banana PL-PL
Electro Sonic:
Cable Assembly Patch Cord 0.91m 20AWG Test Clip to Stack-Up Banana PL-PL
线规 20.0 AWG
额定电压DC 300 V
工作电压 300V max
额定电流 5 A
额定电流Max 5 A
额定电压 60 V
长度 36 in
脚长度 914.4 mm
电缆长度 0.91 m
颜色 Black
触点材质 Beryllium Copper
绝缘材质 Nylon
外壳材质 PVC
产品生命周期 Active
包装方式 Bag
制造应用 研究开发, 测试与测量, Industrial, 电子服务, Test & Measurement, Research & Development, Electronics Service, 工业, 电子设计, 校准, Electronics Design, 仪器仪表, Calibration, Instrumentation, Computer Hardware, 计算机硬件
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8544429000
