3221

测试引线, BNC插座, 可堆叠针尖插头 x2, 70 V, 黑色、红色, 139.7 mm

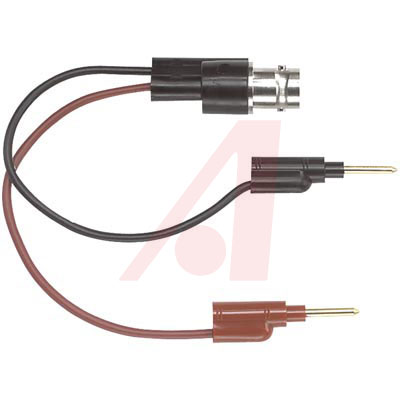

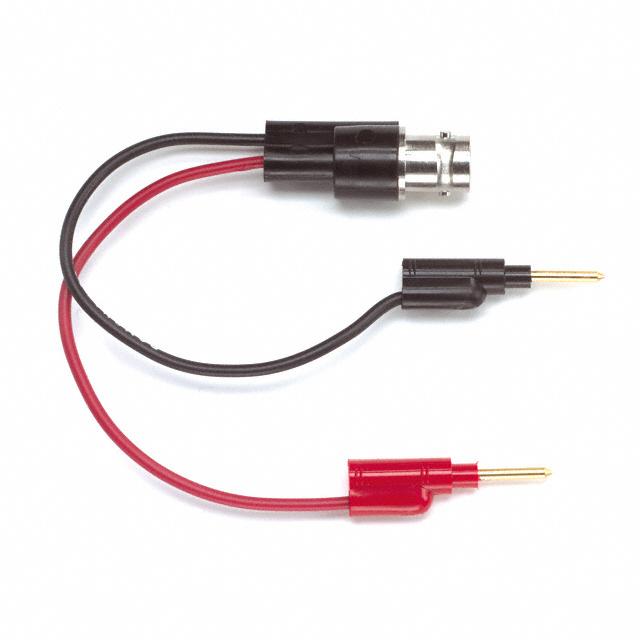

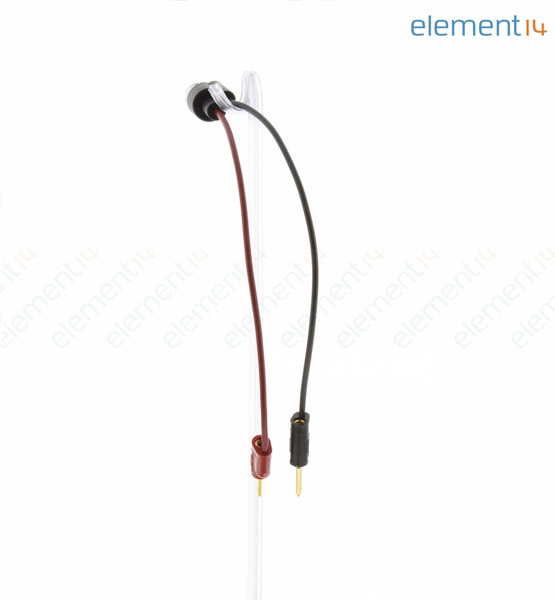

Test Lead, Steel Body Material, PVC Insulation Material

** Ratings**

** Voltage** : Hands free testing in controlled voltage environments: 500 V RMS Max.

** For CE compliance** : not intended for hand-held use at voltages above 33 V RMS /70 VDC

** Operating Temperature** : +131°F +55°C Max.

** Features**

* Converts BNC Male Cables/Connectors to Stackable Pin Tip for Test Versatility

* Miniature Banana Plug Springs Are Gold Plated Beryllium Copper for Excellent Electrical Connection

* BNC Connector Is Molded Directly to the Wire for Pull Strength Durability and Dust and Moisture Resistance

* Black Wire Is Connected to BNC Shell, Red Wire to BNC Center Contact

* Pin Tip Plugs Are Stackable
