3-641653-2

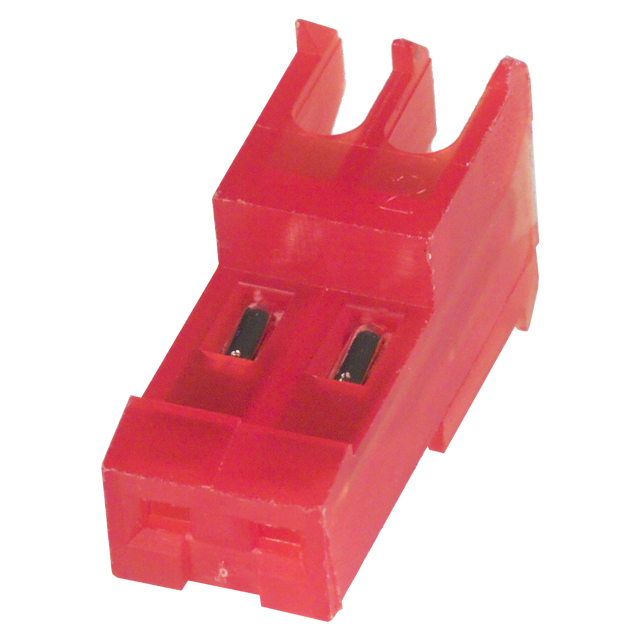

Conn IDC Connector RCP 2POS 2.54mm IDT RA Cable Mount Bag

2 位置矩形连 插座 IDC 锡 22 AWG

得捷:
CONN RCPT 2POS IDC 22AWG TIN

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s idc connector 3-641653-2 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a receptacle type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. 3-641653-2 is housed in red nylon. It uses the idt termination method. This product is 5.08 mm long, 7.75 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector RCP 2 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
Wire-To-Board Connector, 2.54 mm, 2 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

Electro Sonic:
02P MTA100 CONN ASSY RED LF
