3-644540-7

AMP FROM TE CONNECTIVITY  3-644540-7  连接器, IDC

7 位置矩形连 插座 IDC 锡 22 AWG

得捷:
CONN RCPT 7POS IDC 22AWG TIN

e络盟:
AMP FROM TE CONNECTIVITY  3-644540-7  连接器, IDC

艾睿:

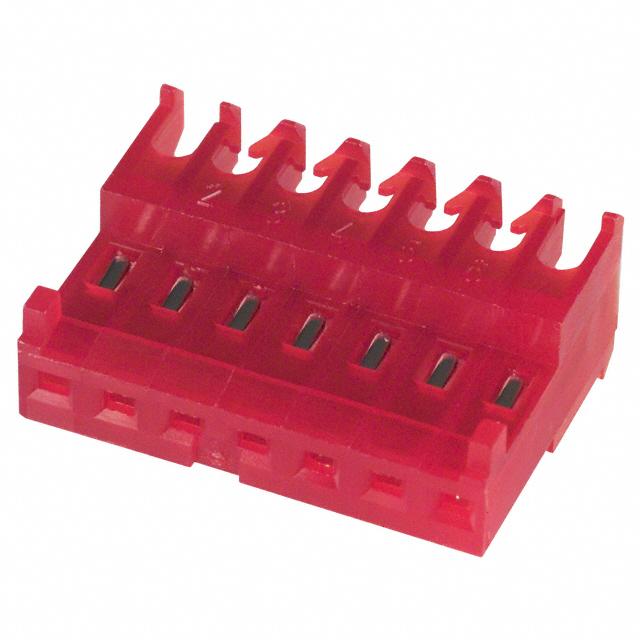

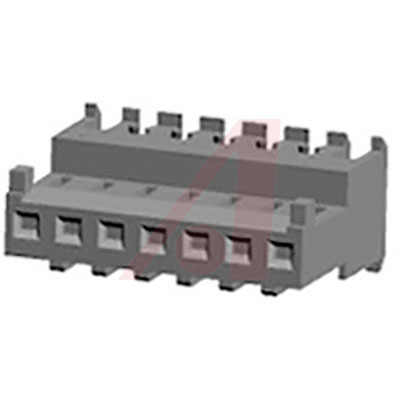

Mount this idc connector 3-644540-7 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This F connector&s;s 7 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. It has a female type gender. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. 3-644540-7 is housed in red nylon. This connector has an operating temperature of -55 to 105 °C. This product is 17.78 mm long, 7.75 mm tall and 13.21 mm deep.

Allied Electronics:
MTA-100 Series 2.54mm Pitch 7 Way 1 RowFemale Straight PCB Connector Housing

安富利:
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece

Chip1Stop:
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Box/Carton

Verical:
Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  3-644540-7  Wire-To-Board Connector, 2.54 mm, 7 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 22 AWG, STANDARD

Electro Sonic:
07P MTA100 CONN ASSY F/T POL
