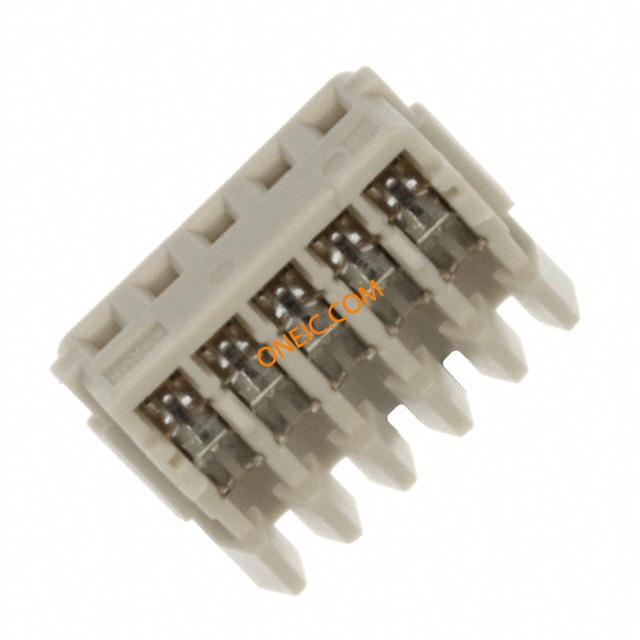

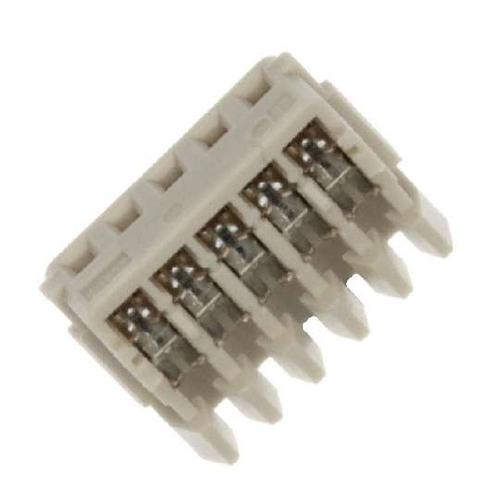

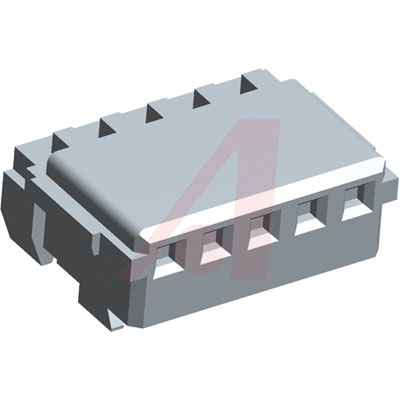

353293-5

连接器

MINI CT MT REC ASSY 5P GRAY

Product Highlights

Receptacle Assembly

Connector Type = MT Mass Termination

Number of Positions = 5

Without Panel Attachment

Terminate To Wire

得捷:
CONN RCPT 5POS IDC 26-28AWG TIN

立创商城:
353293-5

艾睿:
Reduce safety concerns with this idc connector 353293-5 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 1.5 mm. It has a straight body orientation. This is a 1-row connector. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. It uses the idt termination method. 353293-5 is housed in gray nylon. This connector has an operating temperature of -30 to 105 °C. This product is 9 mm long, 3.6 mm tall and 6 mm deep.

Allied Electronics:
Cable Mount IDC Connector Socket, 5 Way, 1 Row, 1.5mm Pitch

安富利:
Conn IDC Connector RCP 5 POS 1.5mm IDT ST Cable Mount Bag/Box

Chip1Stop:
Conn IDC Connector RCP 5 POS 1.5mm IDT ST Cable Mount Bag/Box

Verical:
Conn Wire to Board F 5 POS 1.5mm IDT ST Cable Mount Bag

MASTER:
AMP MINI COMMON TERMINATED CT CONNECTOR 1.5mm PITCH MT RECEPTACLE ASSEMBLY

Powell:
1.5mm AMP Mini CT

Online Components:
MINI CT MT REC ASSY 5P GRAY

Electro Sonic:
MINI CT MT REC ASSY 5P GRAY
