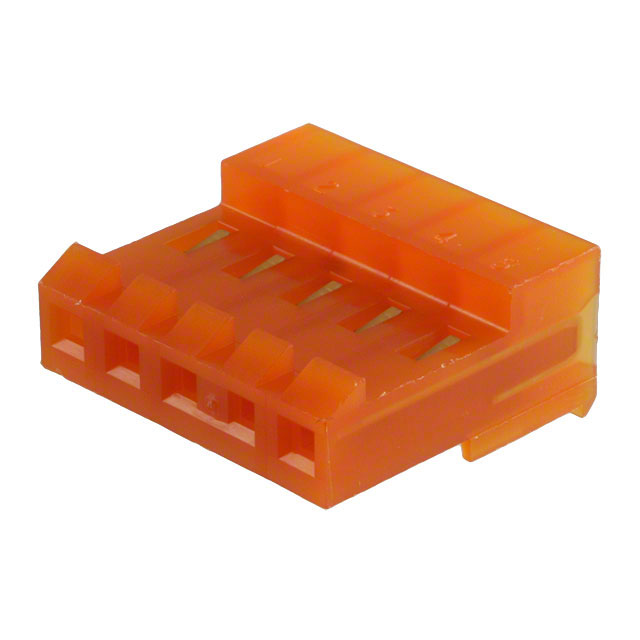

3-641217-5

Conn IDC Connector F 5POS 3.96mm IDT RA Cable Mount

05P MTA156 CONN ASSY 18AWG ORA

Product Highlights

MTA-156 Connectors

Number of Positions = 5

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 5POS IDC 18AWG GOLD

艾睿:
This idc connector 3-641217-5 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This F connector&s;s 5 contacts that are made out of copper alloy and plated with gold. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. This is a 1-row connector. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. This product is 19.81 mm long, 9.02 mm tall and 18.42 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method. 3-641217-5 is housed in orange nylon.

安富利:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount

Chip1Stop:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount

Verical:
Conn HDR, 05P MTA156 CONN ASSY 18AWG ORA

MASTER:
MTA-156 CONNECTOR ASSEMBLY, 18 AWG STANDARD

Online Components:
05P MTA156 CONN ASSY 18AWG ORA
