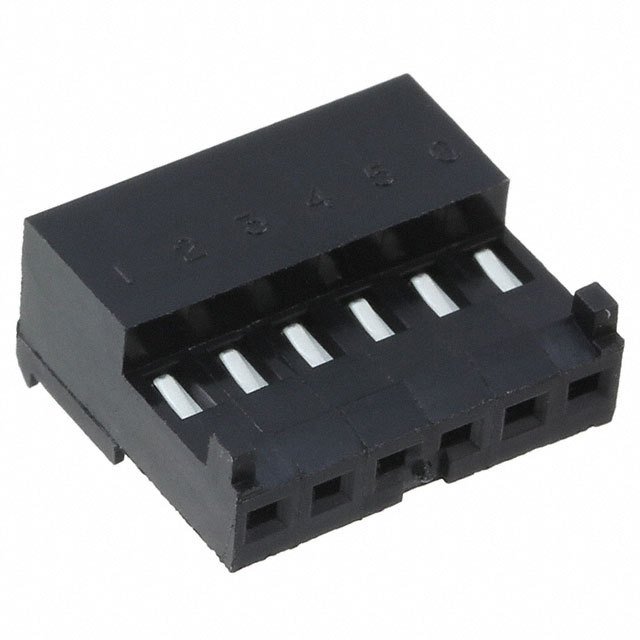

Conn IDC Connector F 6POS 2.54mm IDT RA Cable Mount Bag
6 位置矩形连 插座 IDC 锡 22 AWG
得捷:
CONN RCPT 6POS IDC 22AWG TIN
艾睿:
Use this idc connector 3-644083-6 connector from TE Connectivity when board-to-board interconnects is required. This F connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. It has a female type gender. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. This product is 15.24 mm long, 6.99 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C. 3-644083-6 is housed in black nylon.
安富利:
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece
Chip1Stop:
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Bag
MASTER:
MTA 100 CONNECTOR ASSEMBLY, 22 AWG, UL94V 0, SPECIAL
Electro Sonic:
06P MTA100 CONN ASSY POL TAB
触点数 6
线规 22 AWG
触点电镀 Tin
额定电压AC 250 V
排数 1
易燃性等级 UL 94 V-0
针脚数 6
带凸肩 No
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
高度 6.99 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
