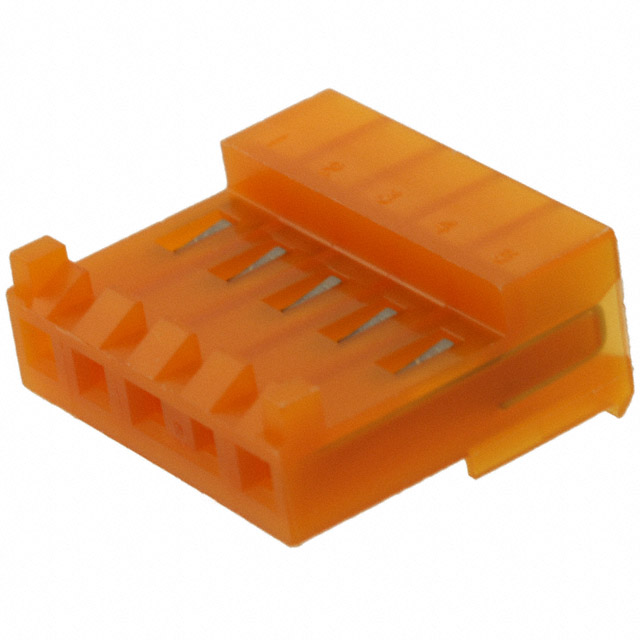

Conn IDC Connector F 5POS 3.96mm IDT RA Cable Mount
5 位置矩形连 插座 IDC 镀金 18AWG
得捷:
CONN RCPT 5POS IDC 18AWG GOLD
贸泽:
Headers & Wire Housings 05P RECPT 18 AWG ORA
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this idc connector 3-644460-5 header connector from TE Connectivity on your PCB today! This F connector&s;s 5 contacts that are made out of copper alloy and plated with gold. Its pitch is 3.96 mm. This is a 1-row connector. It has a female type gender. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. This product is 19.81 mm long, 9.02 mm tall and 18.42 mm deep. This connector has an operating temperature of -55 to 105 °C. 3-644460-5 is housed in orange nylon. It uses the idt termination method.
安富利:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount
Chip1Stop:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount Bag
Verical:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount Bag
MASTER:
MTA-156 CONNECTOR ASSEMBLY, 18 AWG, STANDARD
Online Components:
05P MTA156 CONN ASSY 18AWG ORA
Electro Sonic:
05P MTA156 CONN ASSY 18AWG ORA
触点数 5
线规 18 AWG
触点电镀 Gold
额定电压AC 600 V
额定电流 7 A
排数 1
易燃性等级 UL 94 V-2
针脚数 5
带凸肩 No
额定电流Max 7A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
额定电压 600 VAC
接触电阻Max 3 mΩ
高度 9.02 mm
外壳颜色 Orange
颜色 Orange
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
制造应用 Power, Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
