3-640595-6

Conn IDC Connector RCP 6POS 3.96mm IDT RA Cable Mount Bag

06P MTA156 CONN ASSY 26AWG LF

得捷:
CONN RCPT 6POS IDC 26AWG TIN

艾睿:

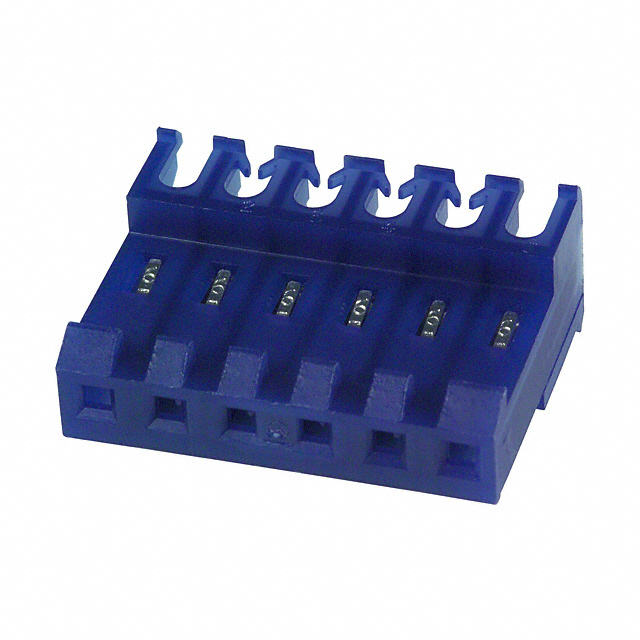

Use this idc connector 3-640595-6 header connector from TE Connectivity where IDC ribbon cables are used. This RCP connector&s;s 6 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. This is a 1-row connector. It has a right angle body orientation. It has a receptacle type gender. This device has a maximum current rating of 7 A/contact. 3-640595-6 is housed in blue nylon. It uses the idt termination method. This product is 23.77 mm long, 9.78 mm tall and 18.42 mm deep. This connector has an operating temperature of -55 to 105 °C.

Chip1Stop:
Conn IDC Connector RCP 6 POS 3.96mm IDT RA Cable Mount Bag

Verical:
Conn IDC Connector RCP 6 POS 3.96mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  3-640595-6  06P MTA156 CONN ASSY 26AWG LF New

MASTER:
MTA 156 CONNECTOR ASSEMBLY, 26 AWG, STANDARD

Online Components:
06P MTA156 CONN ASSY 26AWG LF

Electro Sonic:
06P MTA156 CONN ASSY 26AWG LF
