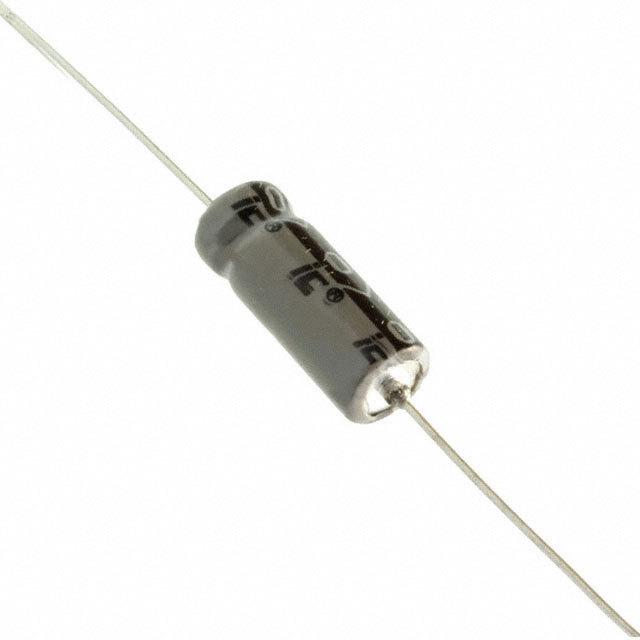

ILLINOIS CAPACITOR 335TTA250M Electrolytic Capacitor, General Purpose, 3.3µF, 250V, TTA Series, ± 20%, Axial Leaded, 8mm
* Temperature Range: –40°C to +85°C
* Working Voltage: 10 to 450 VDC
* Load Life: 2000 Hours
* Axial Lead
* General Purpose
得捷:
CAP ALUM 3.3UF 20% 250V AXIAL
Allied Electronics:
Capacitor; Al Electrolytic; Cap 3.3 uF; Tol 20%; Vol-Rtg 250 VDC; Axial, No Pb
Newark:
# ILLINOIS CAPACITOR 335TTA250M Electrolytic Capacitor, General Purpose, 3.3 µF, 250 V, TTA Series, ± 20%, Axial Leaded, 8 mm
额定电压DC 250 V
电容 3.3 µF
等效串联电阻ESR 100.477mΩ @120Hz
容差 ±20 %
纹波电流 40 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 V
安装方式 Through Hole
高度 16 mm
直径 8.00 mm
脚长度 35.0 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
